Product Description

The Metal Mesh Stripping Machine is a tabletop AC-powered device that uses pneumatic pressure and is equipped with an AKS solenoid valve to ensure stable and adjustable working pressure. Its main electrical circuit adopts SCR control, allowing precise adjustment of pre-press time, working heat, operating duration, and ramp-up time, ensuring high reliability.

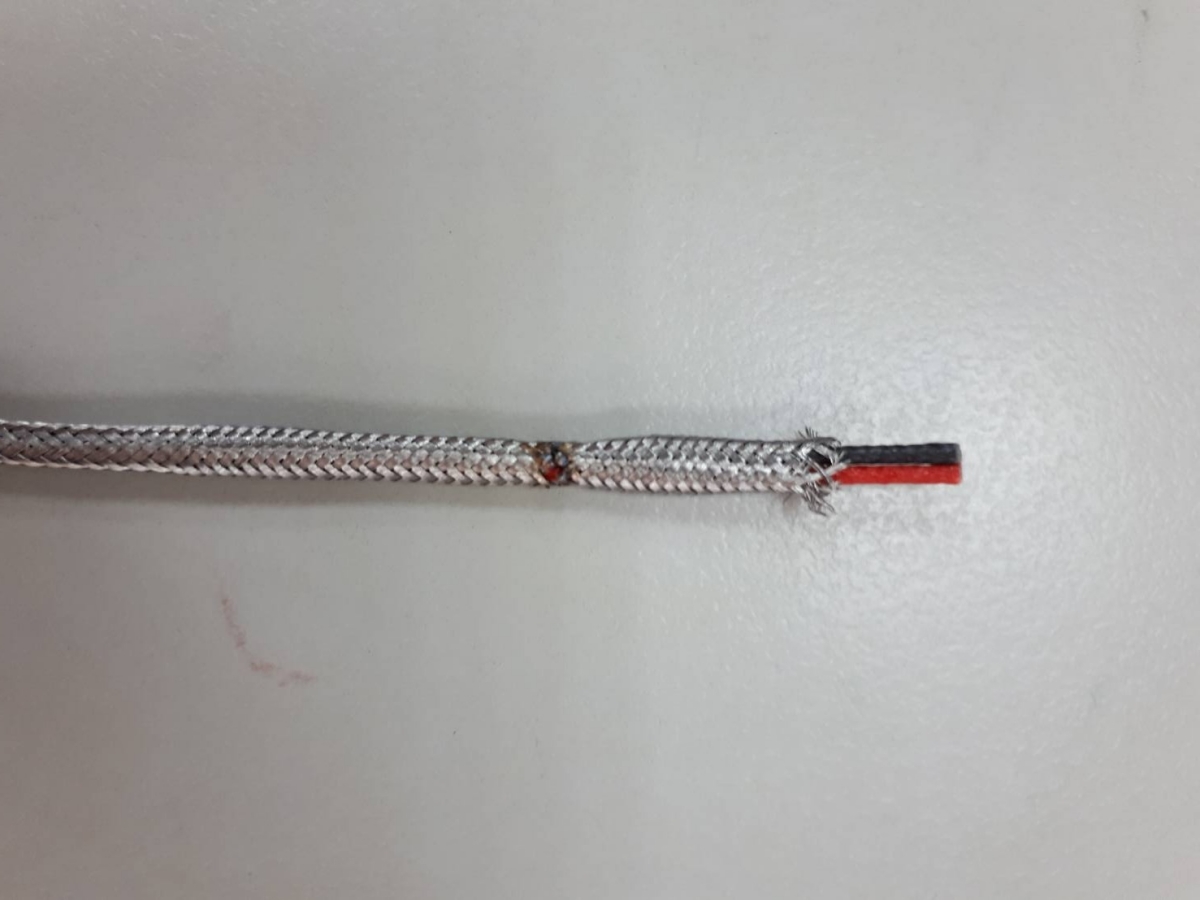

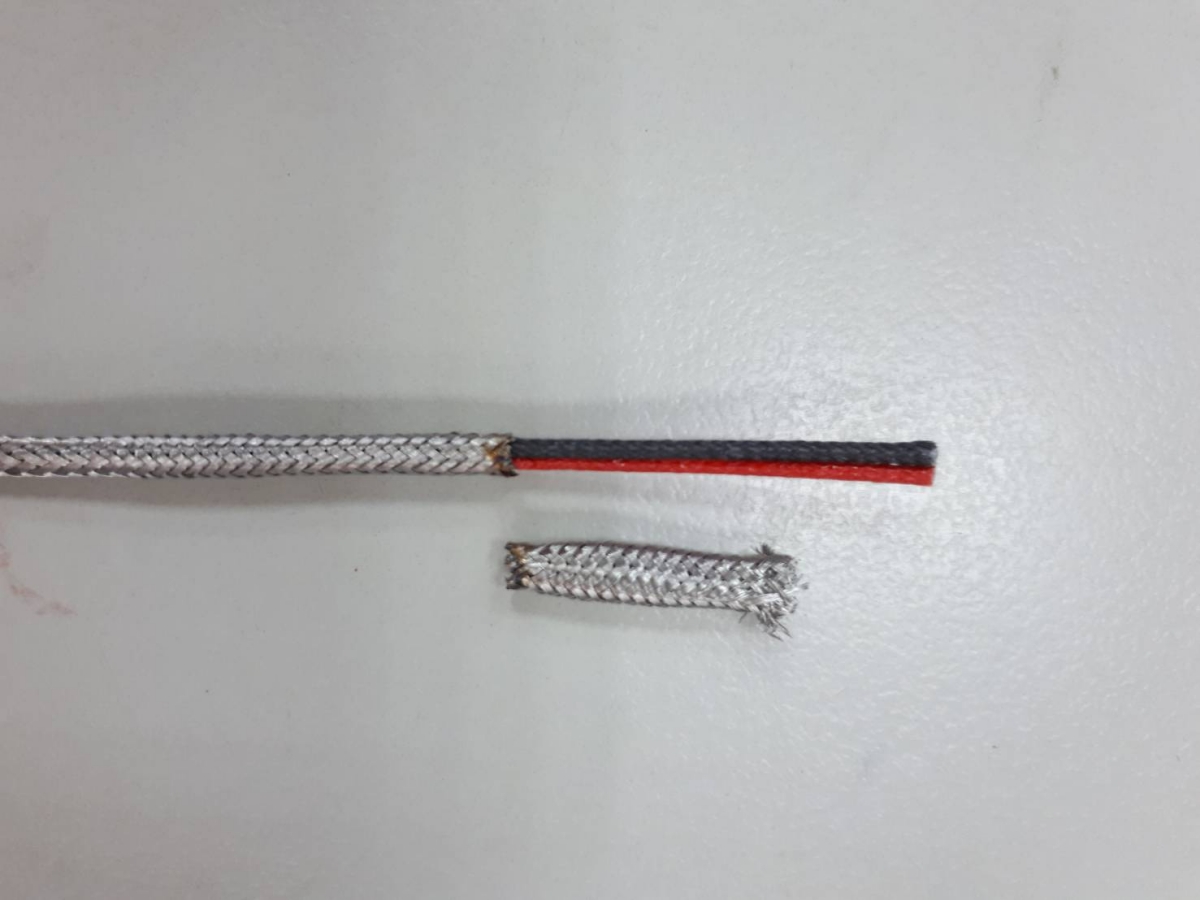

When paired with the specialized stripping electrode, the machine can efficiently strip metal mesh wires.

Main Technical Parameters

Item	Specification
Model	HAN-201
Rated Power	8KVA
Rated Voltage	220V, 50Hz (Single-phase)
Maximum Mold Pressure	100Kgf
Air Source Pressure	0.5Mpa
Machine Weight	35Kg

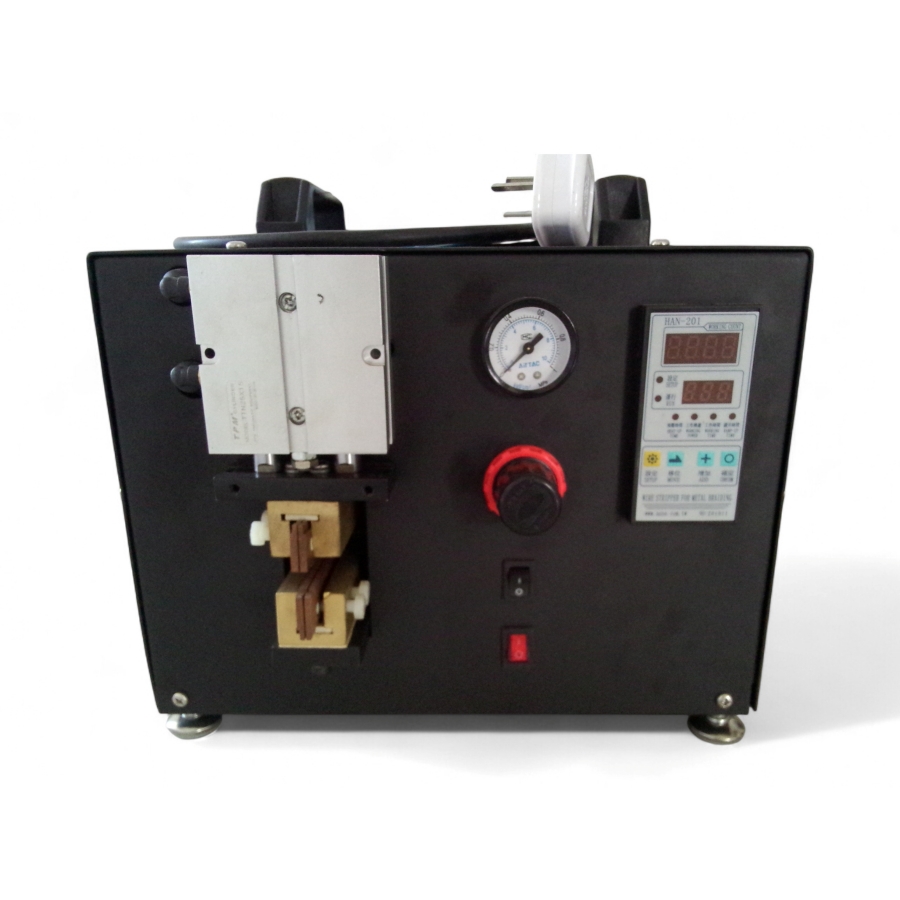

Equipment Structure Overview

The machine mainly consists of the machine body, pressurizing mechanism, transformer, upper and lower electrode circuits, specialized stripping electrode fixture, and electrical control components.

• The body is constructed from bent and welded steel plates and includes a mold working platform.
• The pressurizing mechanism is composed of a cylinder and related components, with the cylinder directly connected to the machine frame.
• The upper and lower copper clamp heads serve as electrode circuits and mold holders, forming the current loop required for machine operation and enabling the stripping process.
