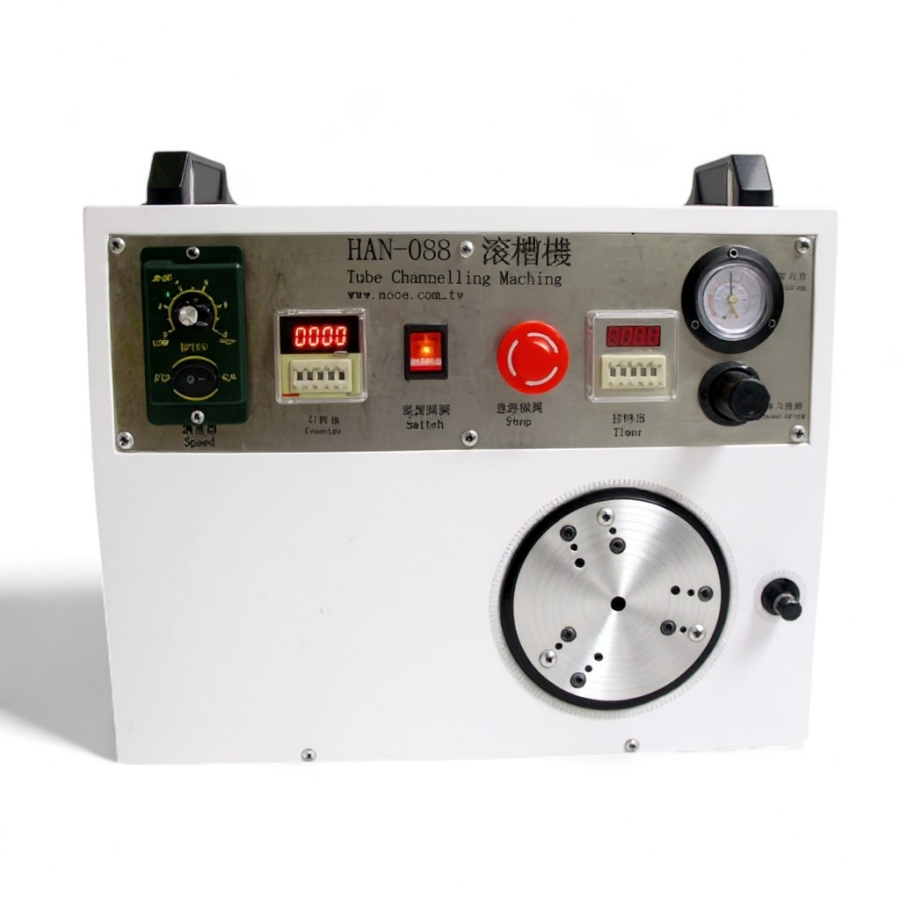

Operating Principle

• The machine uses pneumatic power for processing. A motor drives the rolling mold, allowing the workpiece to form grooves according to the required specifications.

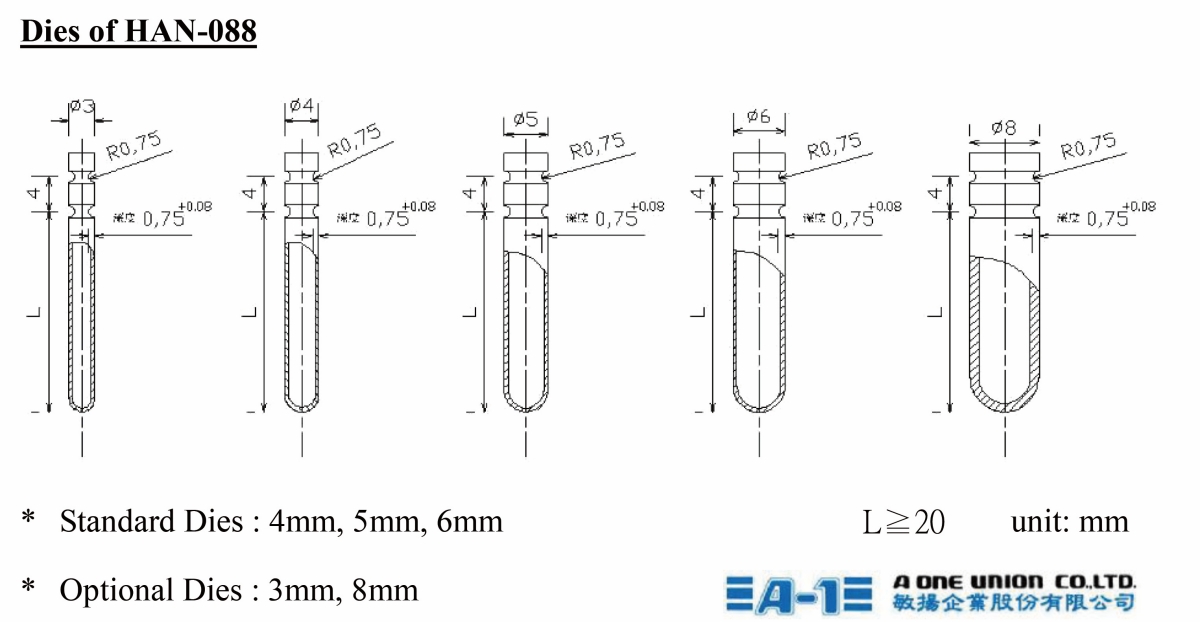

Processing Outer Diameter Range

• Standard sizes: 4 mm, 5 mm, 6 mm
• Optional sizes: 3 mm, 8 mm (sold separately)
• Standard configuration: Double-groove
• Optional configurations: Single-groove or triple-groove (custom-made)

Applicable Materials

• Stainless steel tubes
• Copper tubes
• Aluminum tubes
• And other similar metal tubing

Tube Selection Guidelines

• Tube thickness is a critical factor; a thickness below 0.5 mm is ideal.
• Thicker tubes require longer processing time.
• Tube hardness significantly affects mold lifespan—the harder the material, the shorter the mold life.

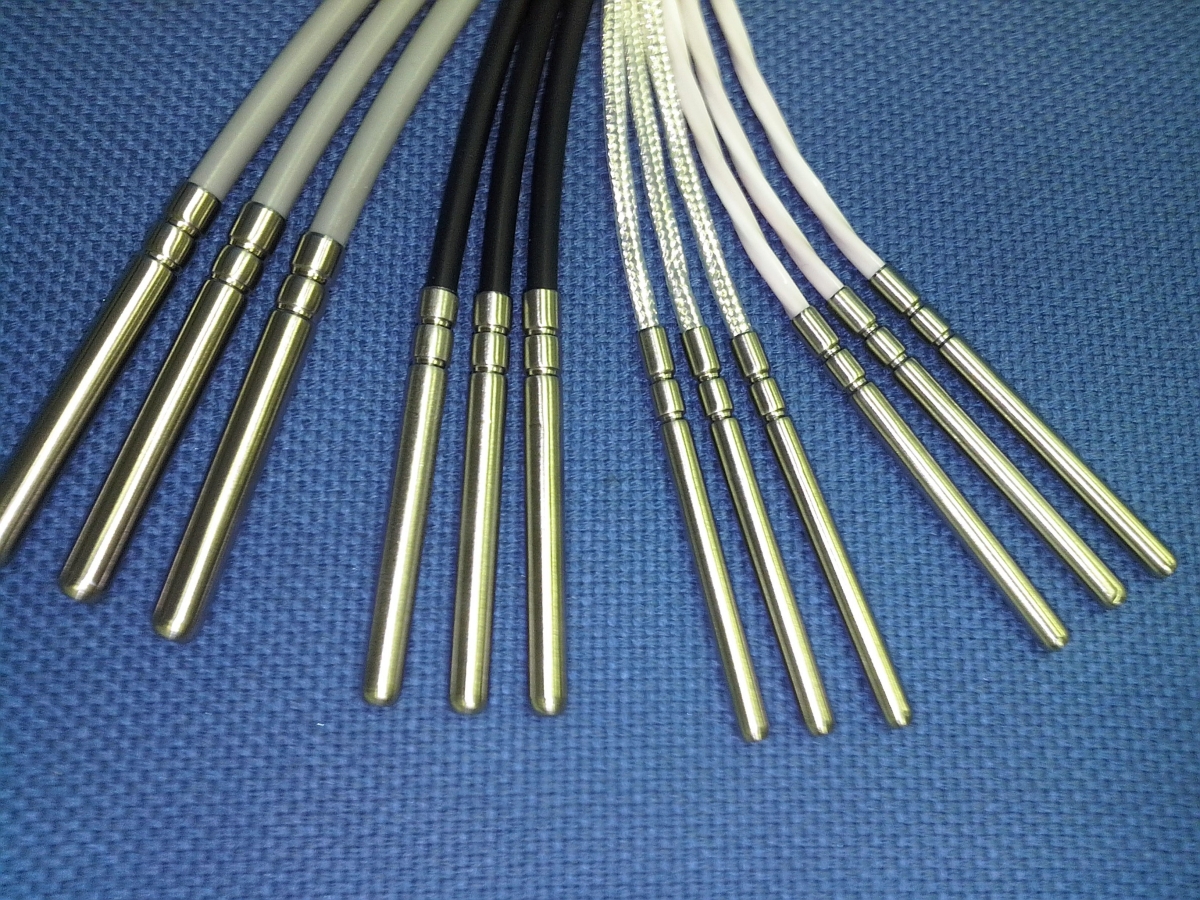

Fit Between Tube and Lead Wire

• Selecting the correct inner diameter of the tube and the outer diameter of the lead wire is essential.
• A tight fit is required for optimal and high-quality results.

We can provide samples and perform trial processing upon request for your evaluation.
