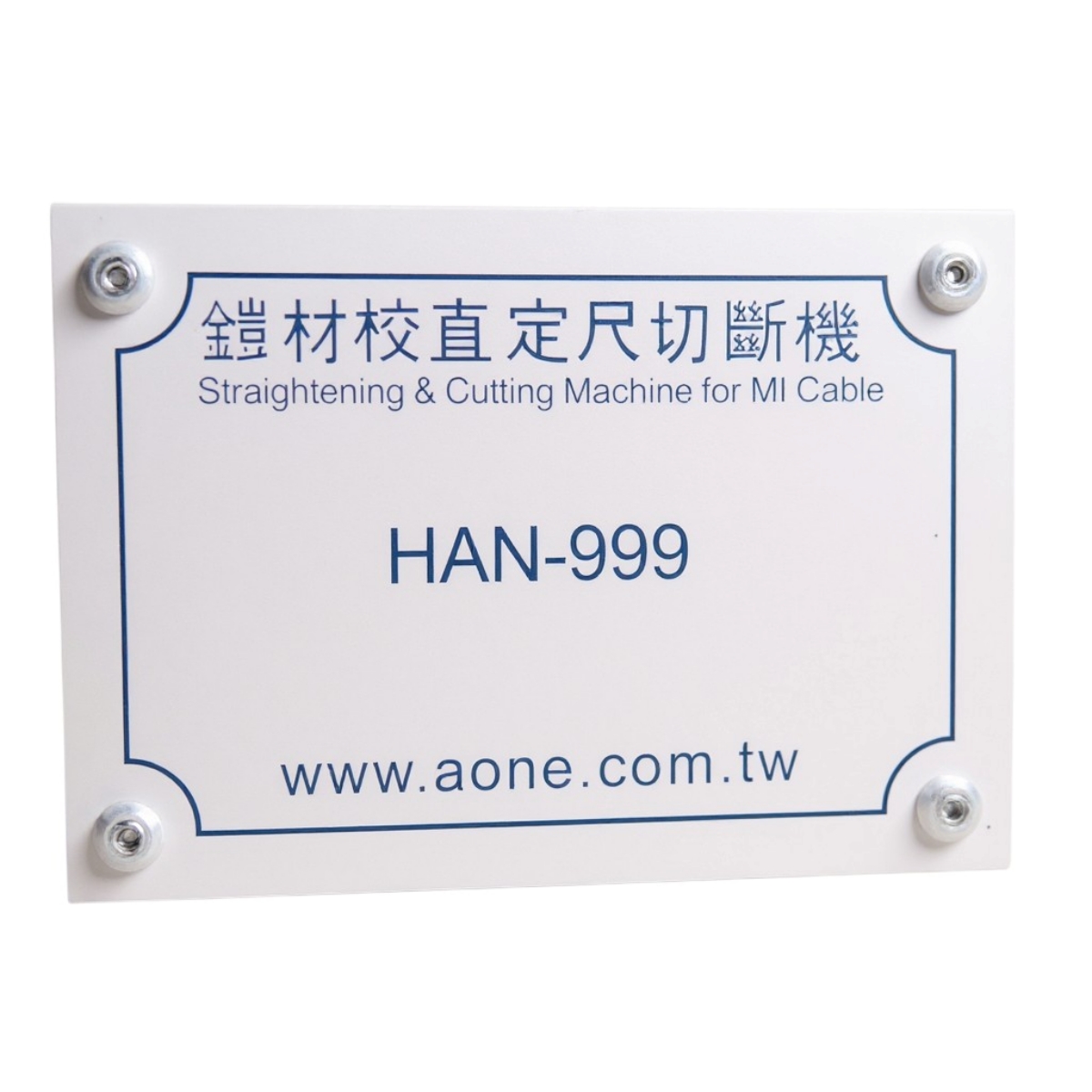

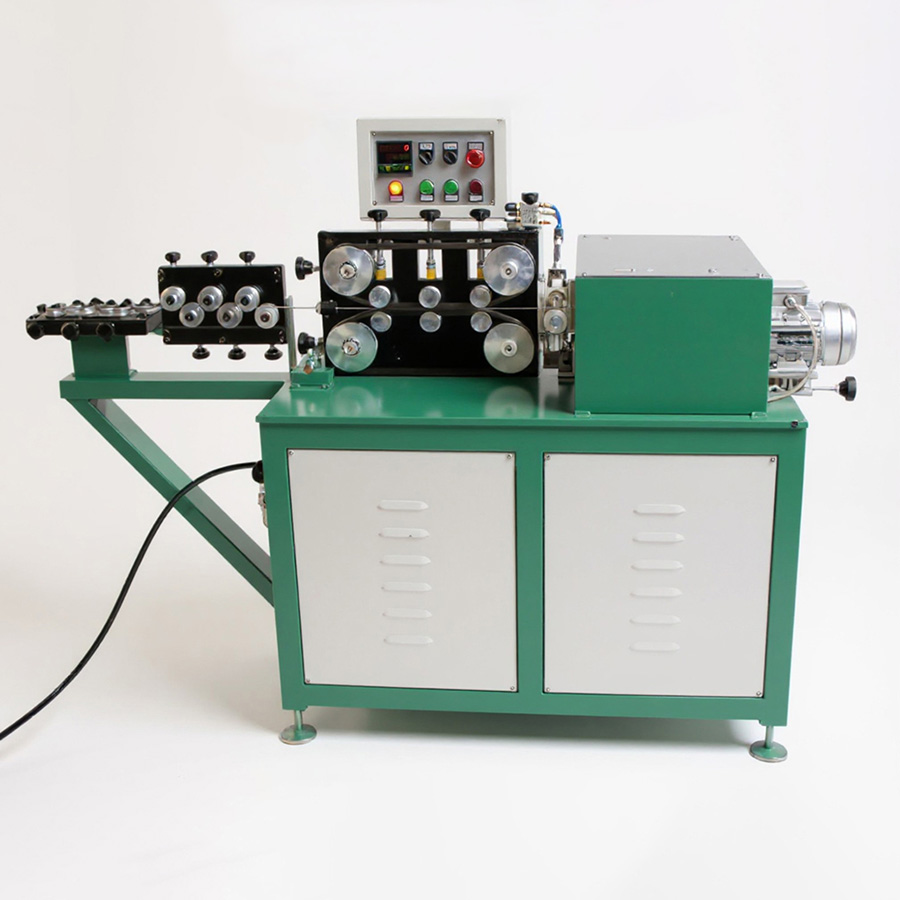

The Latest Integrated Model: Straightening, Measuring, Cutting, and Grooving

This upgraded machine integrates straightening, length measuring, cutting, and grooving functions, enabling rapid, high-volume, and time-efficient processing.

This upgraded machine integrates straightening, length measuring, cutting, and grooving functions, enabling rapid, high-volume, and time-efficient processing.

Features

• Precision-engineered components
• No scratches left during processing
• Easy setup and operation
• Complete operation manual included
• Capable of storing production records
• Processing outer diameter range: 3 mm ~ 8 mm Ø
• Working length: 25 mm ~ 9999 mm
• Minimum cable insertion length: 1.2 m

Specifications

• Input Power: 240V
• Frequency: 60Hz
• Operating Power: 1500 W/hr
• Power Consumption: 150 W
• Air Pressure Requirement: 4~5 kgf
• Dimensions: 175 cm × 125 cm × 55 cm
• Machine Weight: 280 kg

Easy Operation

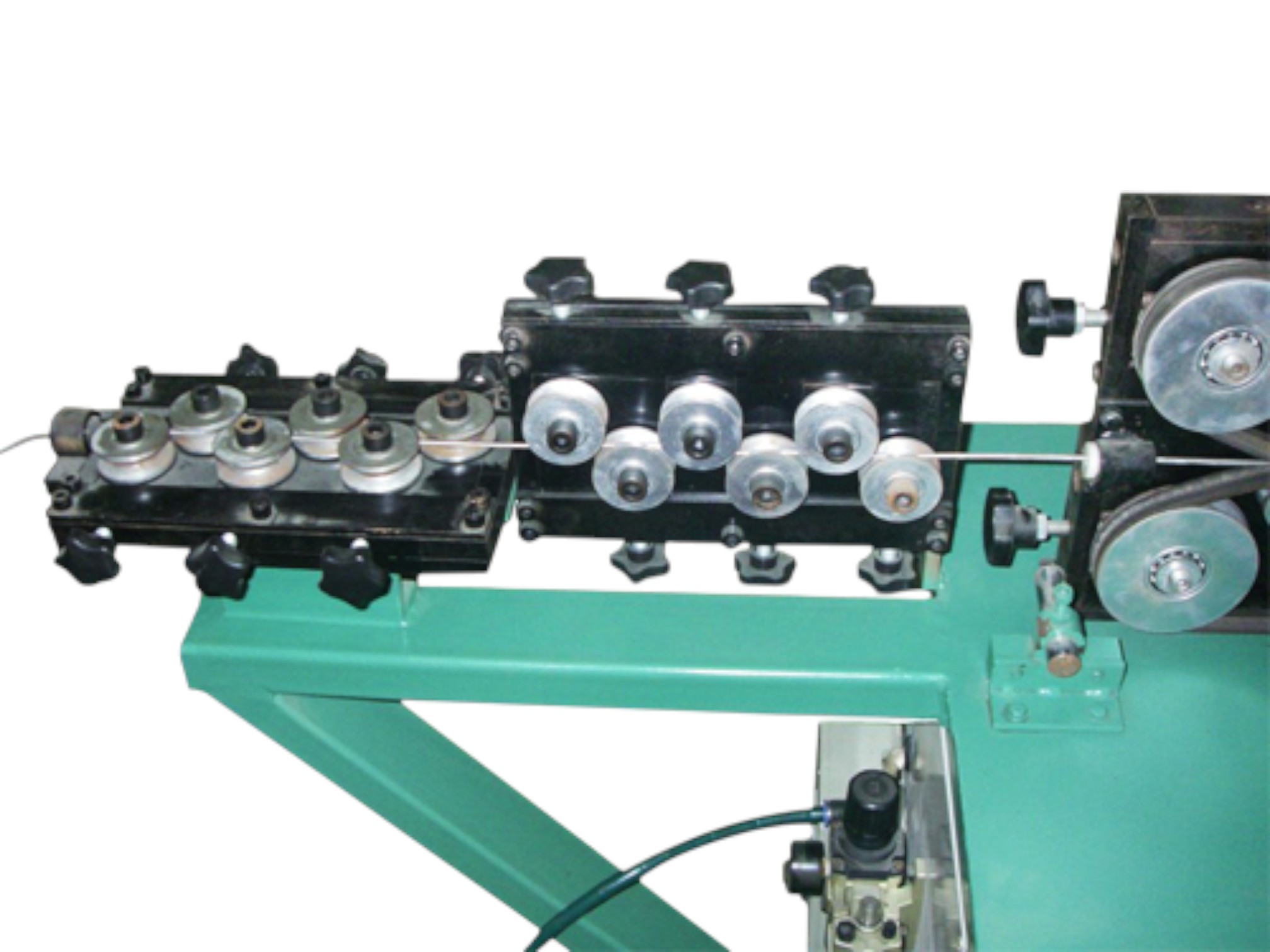

• Simple placement and adjustment of armored cables—compatible with various sizes

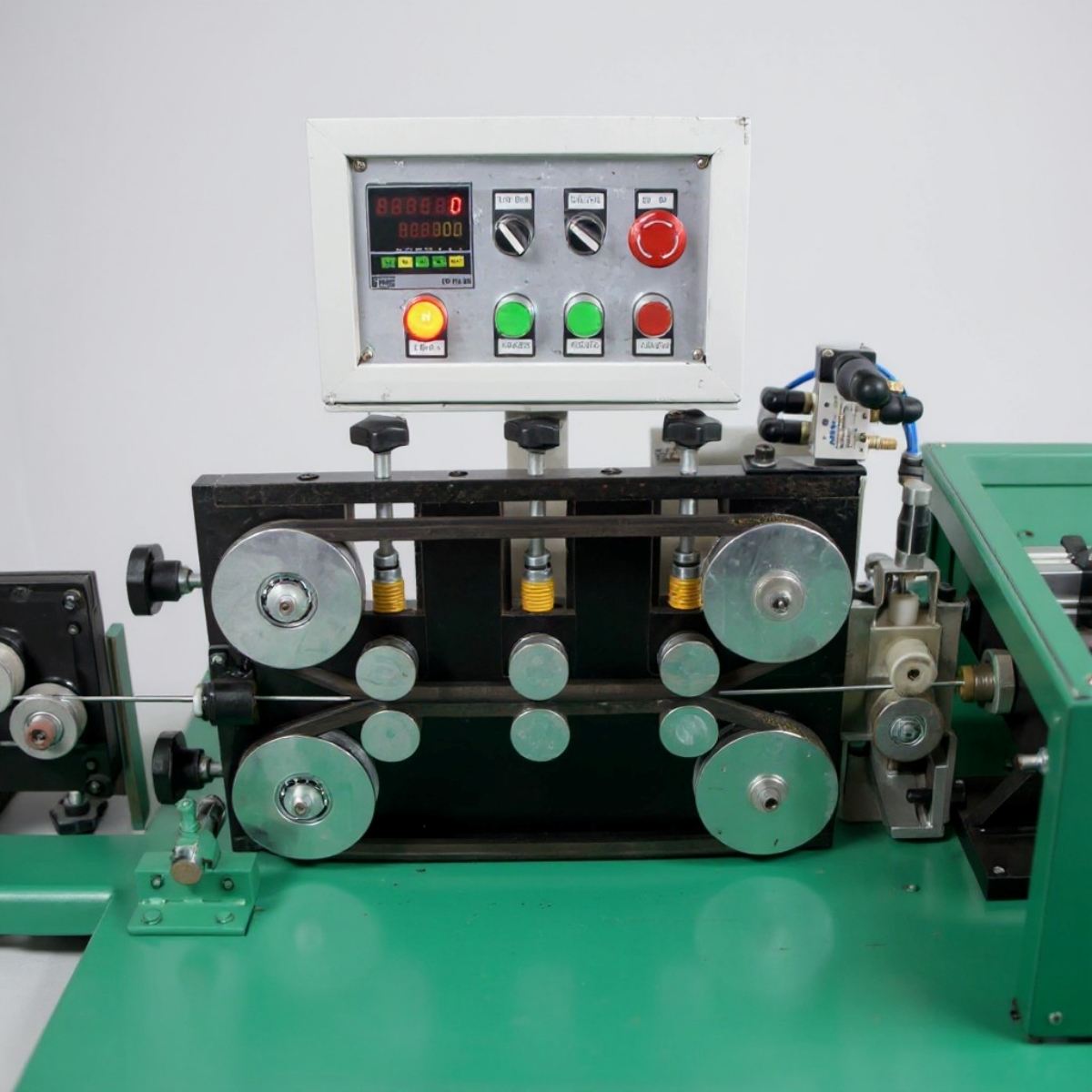

• User-friendly microcomputer control panel

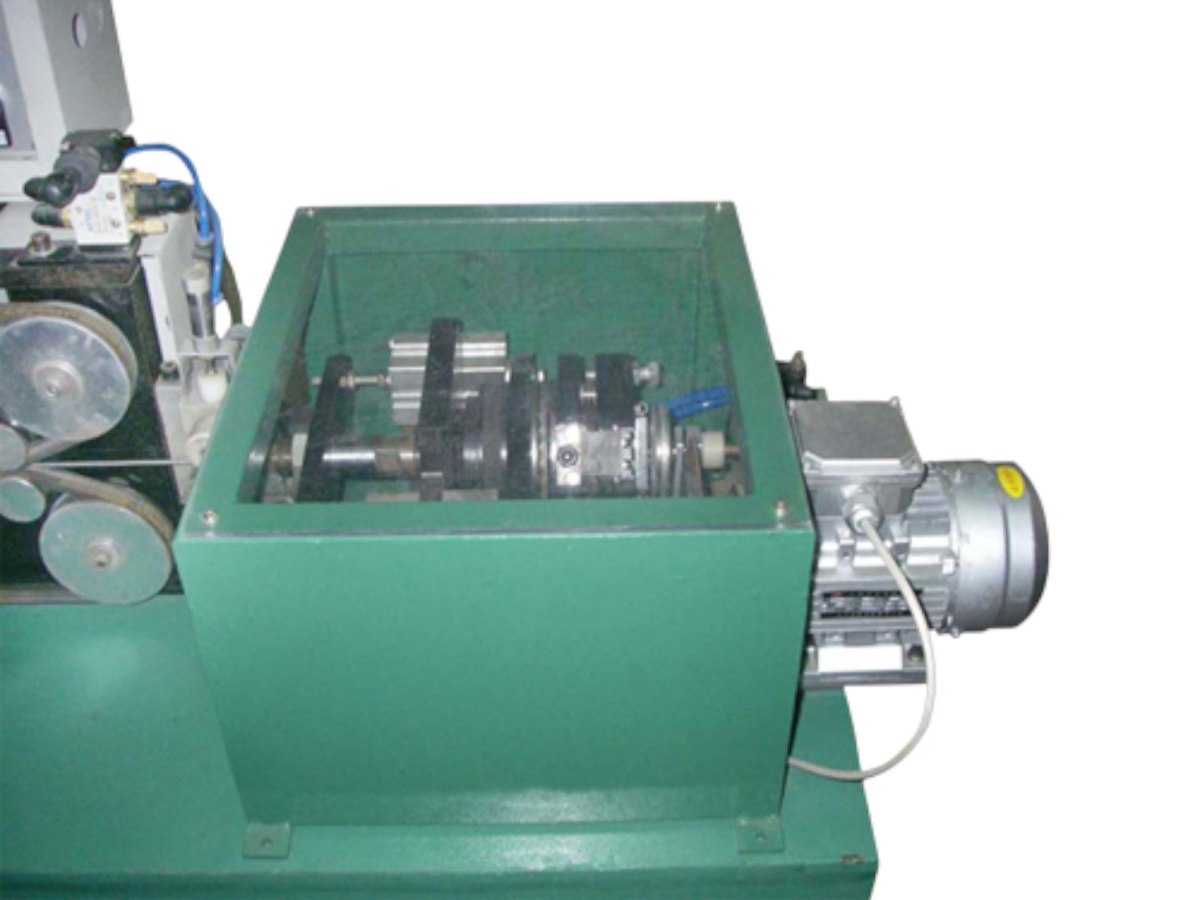

• Easy mold replacement

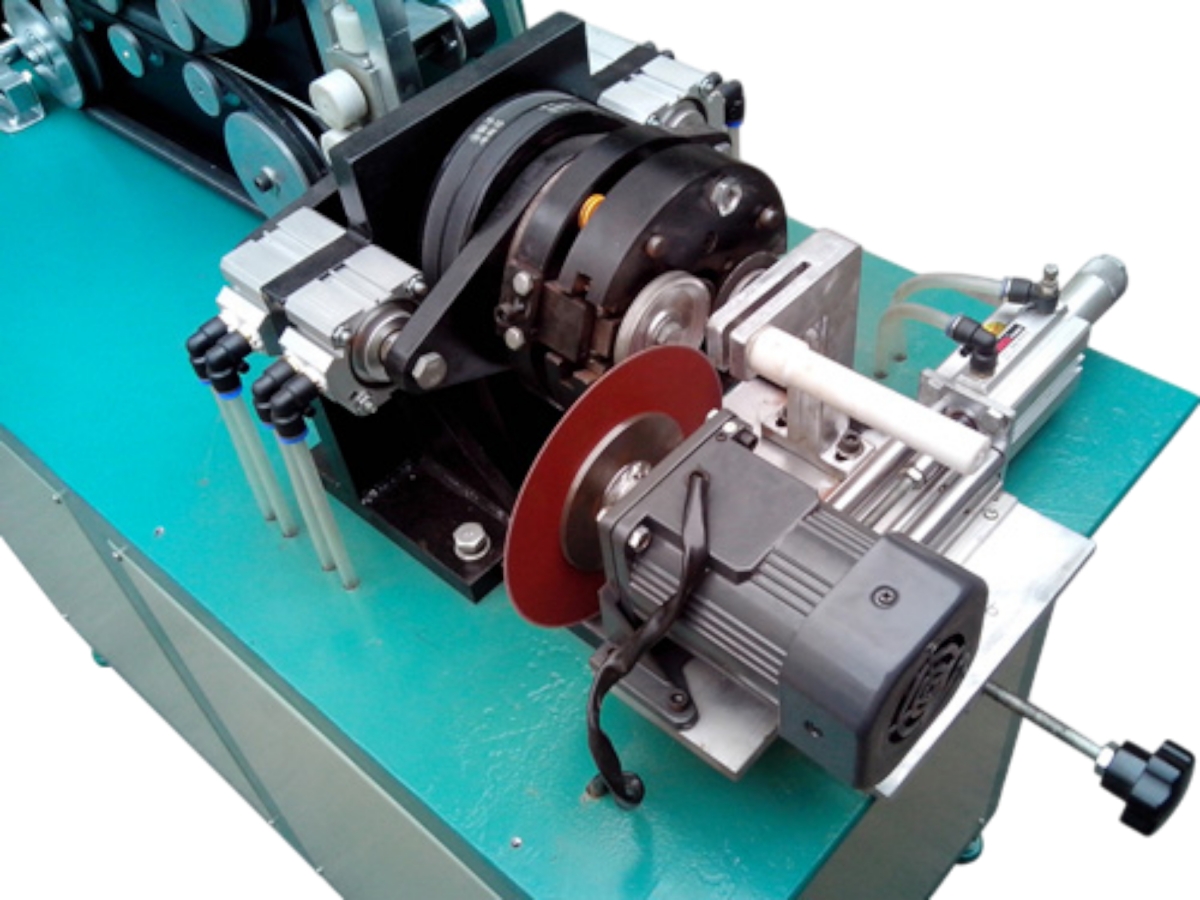

• Consumable cutting discs can be replaced effortlessly
• Complete setup can be finished in just 1–2 minutes

Mold Size	Applicable Cable Diameter
3.0mm Ø	2.8~3.0mm Ø
3.5mm Ø	3.2~3.5mm Ø
4.0mm Ø	3.8~4.0mm Ø
5.0mm Ø	4.8~5.0mm Ø
6.0mm Ø	5.8~6.0mm Ø
6.5mm Ø	6.3~6.5mm Ø
Other sizes Available upon request
Machine comes pre-installed with a 3.5 mm mold Includes 5 additional cutting discs (1 pre-installed + 5 extra)

※ Product specifications are subject to change without prior notice.
※ Designed in Taiwan.
