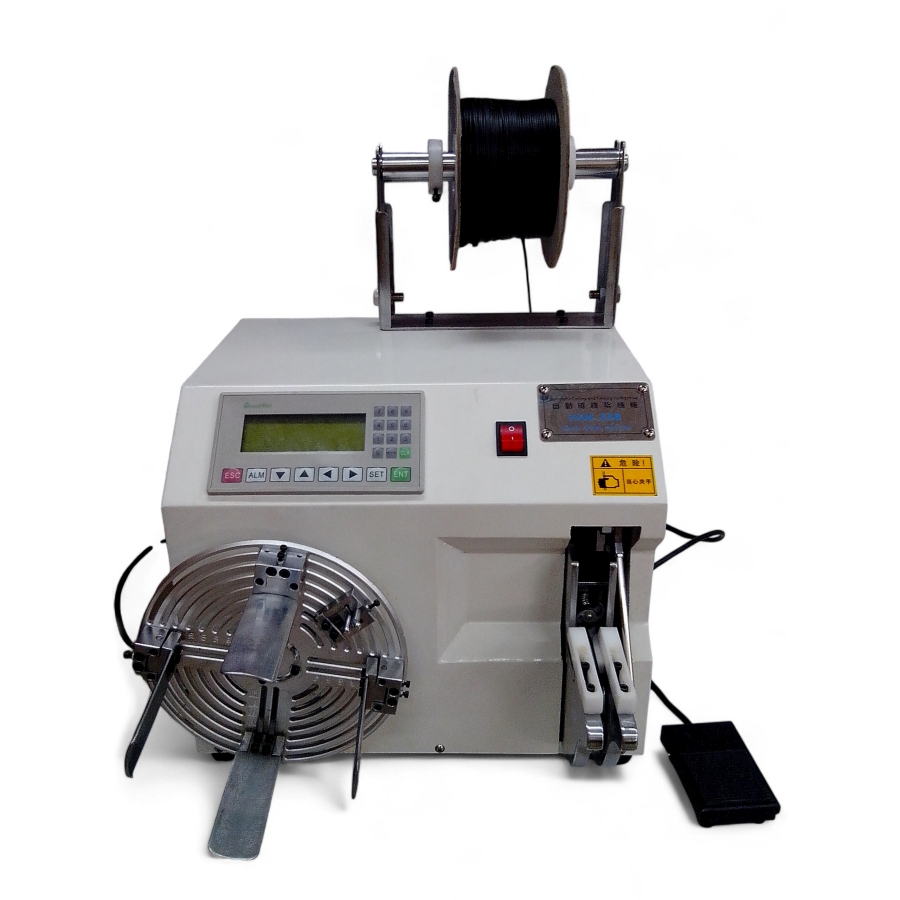

This machine is designed for AC power cords, DC power cables, USB data cables, video cables, HDMI high-definition cables, and other types of transmission wires. It uses PVC-coated iron-core ties to twist and bundle cables, and can also be used for tape-based sealing applications. It reduces operator fatigue, improves efficiency, and saves on tie-consumption costs.
Operators simply place the cable at the winding port for automatic coil winding, then position the wound cable at the binding port, where the machine automatically completes the binding process.
The machine allows adjustable binding length, customizable winding turns, and production quantity counting. It adopts PLC control with a text display interface for easy parameter setting and simple operation.


Specifications

No.	Item	Specification
1	Power Supply	AC 220V
2	Frequency	50Hz / 60Hz
3	Rated Power	120W
4	Winding Size	Adjustable
5	Winding Turns	User-settable
6	Winding Speed	Adjustable
7	Applicable Range	Applicable Range	Binding Length / Bundle Diameter
		65-120mm	Φ4—Φ17mm
		80-140mm	Φ8—Φ25mm
		115-180mm	Φ15—Φ35mm
		140-220mm	Φ25—Φ50mm
8	Binding Turns	User-settable (recommended 3–6 turns)
9	Binding Material	PVC-coated iron-core ties / coreless ties
10	Safety Devices	Fuse protection, fault alarm & auto stop
11	Dimensions (L×W×H)	550x500x580mm
12	Total Weight	40Kg

Operational Efficiency
Based on evaluations from multiple manufacturers, this equipment achieves the following performance:

No.	Cable Length	Binding Efficiency	Winding + Binding Efficiency	Manual Efficiency	Improvement
1	0.5-1.5m	600-700pcs/hr	600-700pcs/hr	400-500pcs/hr	20-35%
2	2-3.5m	400-500pcs/hr	450-600pcs/hr	200-300pcs/hr	20-30%
