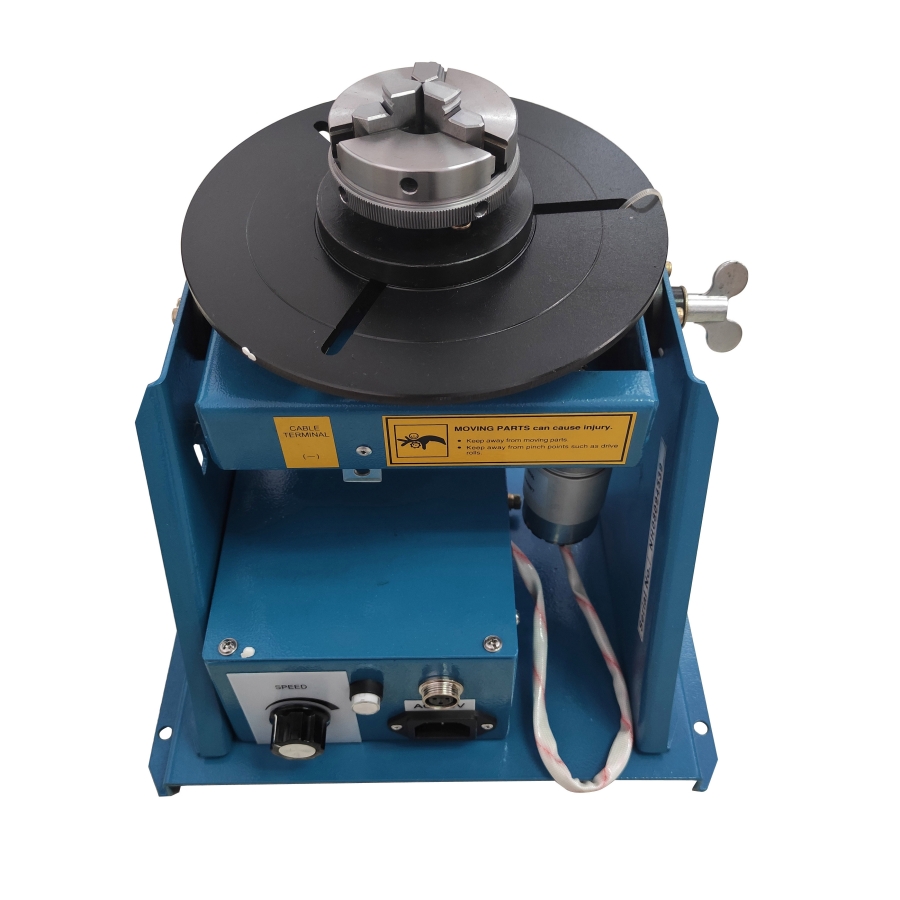

This machine is primarily used for welding circular seams. By utilizing the workpiece’s tilting and rotating functions, the weld seam can be positioned in the most suitable orientations—such as horizontal or boat-shaped positions—thereby enhancing welding quality and improving operational efficiency.

A chuck or custom fixture can be installed on the worktable, allowing the machine to be used with manual welding or combined with welding manipulators to achieve automated welding. It is also widely applicable to cutting, grinding, assembly, and inspection processes, providing versatile support for multi-station operations.

Product Features

• Equipped with a high-quality DC motor, driving the rotating worktable through gear engagement for smooth operation. Welding rotation speed is steplessly adjustable, offering a wide range and high precision.
• Compact and lightweight design for easy handling and operation.
• Simple mechanical connections between the fixture and the worktable for convenient clamping and accurate positioning.
• Foot pedal control for rotation, enabling easy and flexible operation.

Technical Specifications

Item	Specification (BY-10)
Input Power Supply	AC220V 50Hz
Drive Motor	DC24V 10W
Maximum Load Capacity	10 kg
Maximum Load Torque	5 kg.m
Worktable Diameter	180 mm
Worktable Height	219 mm
Tilt Angle	0 ~ 90°
Worktable Rotation Speed	2 ~ 10 r/min
Rated Welding Current	As required (optional)
Net Weight	Depends on configuration
Compatible Chuck	C-65
