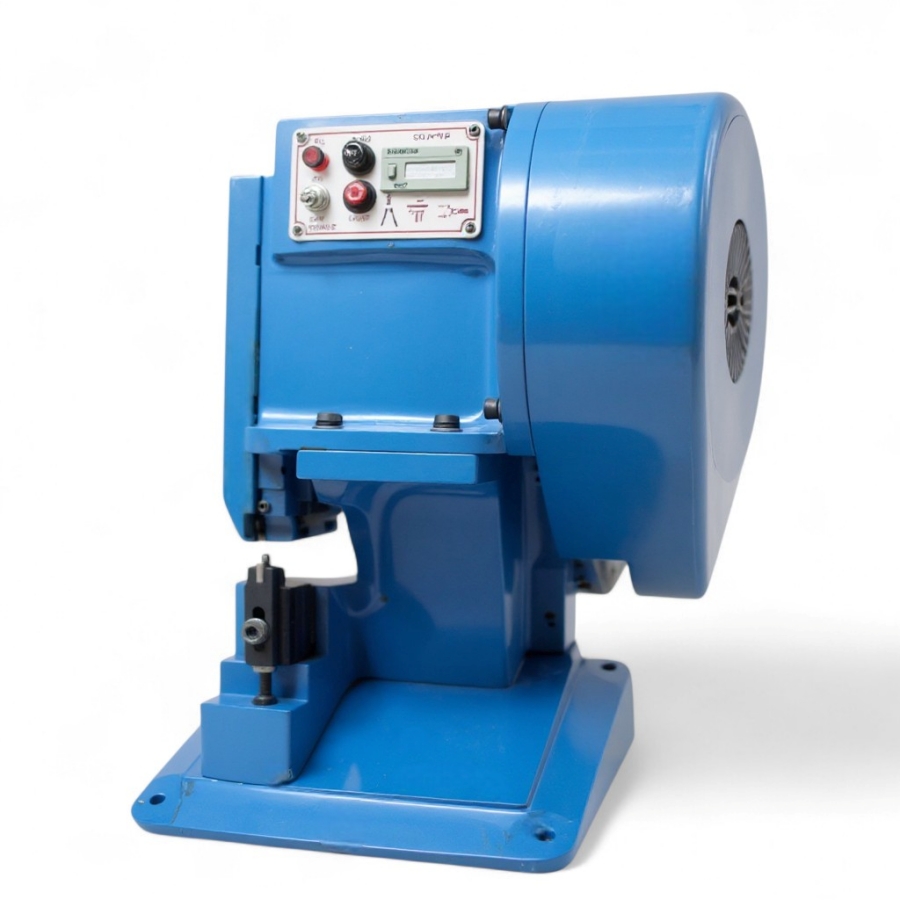

Application and Basic Structure Description

The HAN-806 is specifically designed for wire crimping (copper tape bonding) applications. Through highly efficient aluminum-alloy crimping technology, it effectively replaces traditional soldering methods, preventing issues such as cold soldering, weak solder joints, and air pollution caused by flux fumes. It also complies with multiple international safety certification standards (such as UL, JIS), making it one of the simplest and most reliable methods to achieve certified bonding quality.

The machine features a user-friendly interface and a compact structural design, making it easy to operate—even for beginners. It is widely applicable to a variety of wire and electronic component connection processes.

Main Applications

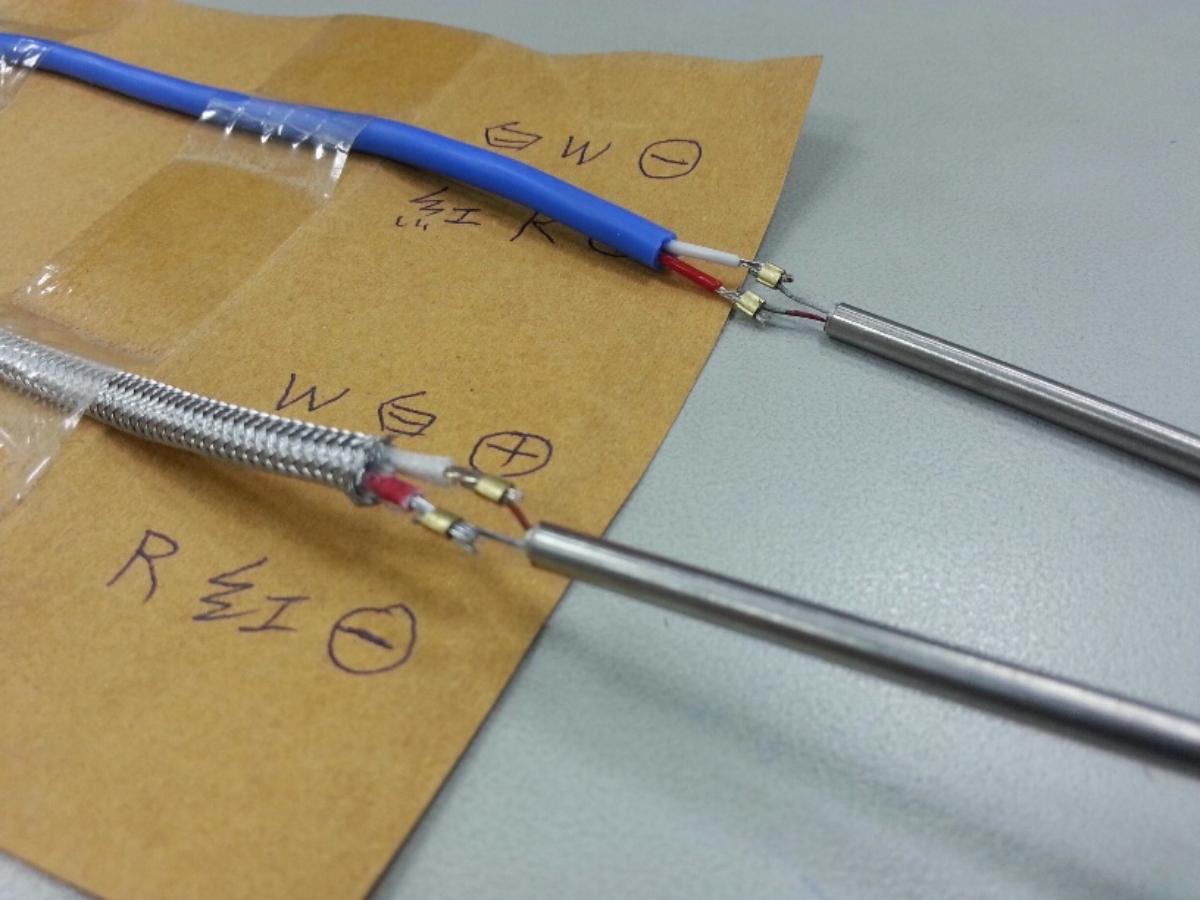

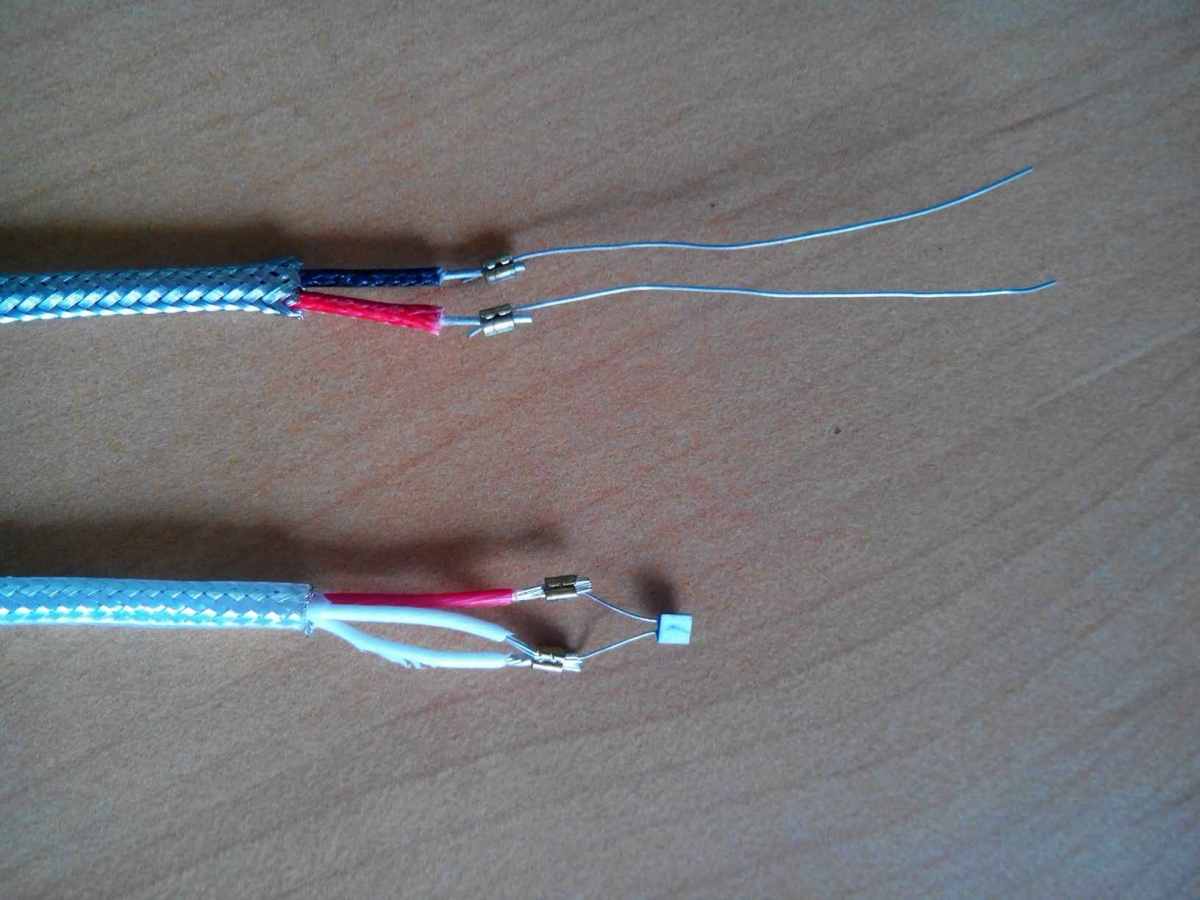

• Crimping wires to neon lamps
• Connecting resistors or LEDs to wires
• Switch-to-wire crimping
• Transformer tap-to-wire bonding
• Precision crimping between resistors and wires
• Connections involving thermal fuses
• Bonding special materials that cannot be soldered, such as high-temperature heating wires and thermal-sensitive components

Key Structural Features

• High-rigidity crimping body ensuring stable and consistent bonding quality
• High-precision die system compatible with various wire gauges and terminal sizes
• Compact structure with small footprint—suitable for integration into automated production lines or standalone workstations
• Compatible with multiple copper tape specifications for flexible processing applications

Item	Parameter
Model	HAN-806
Crimping Force	10 KN
Stroke	23 mm
Average Power Consumption	250 W
Power Supply	AC 220V 50/60Hz
Dimensions	370 mm (W) × 320 mm (L) × 430 mm (H)
Copper Tape Specifications	2mm、4mm、6mm
Machine Weight	54 KG
