Product Specifications

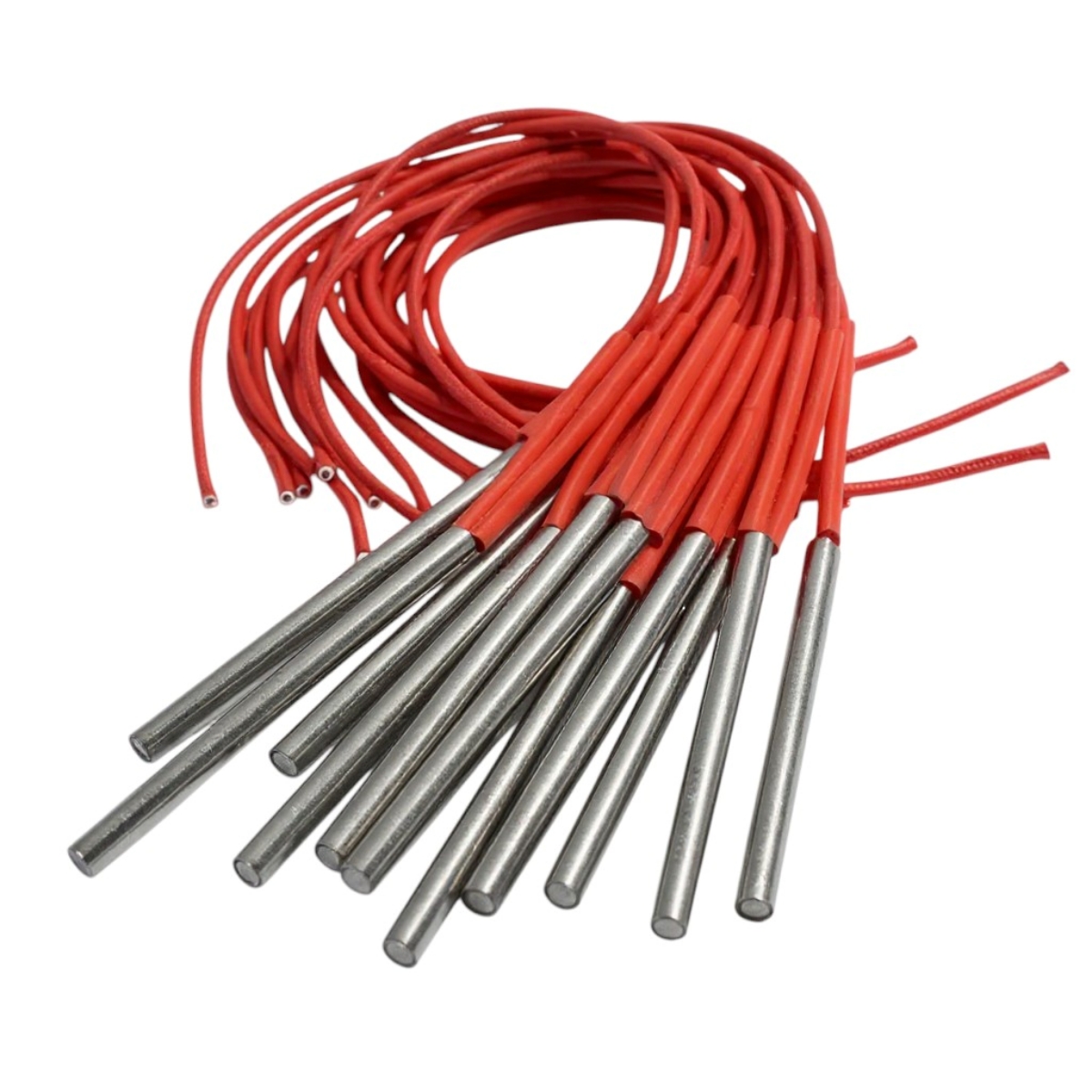

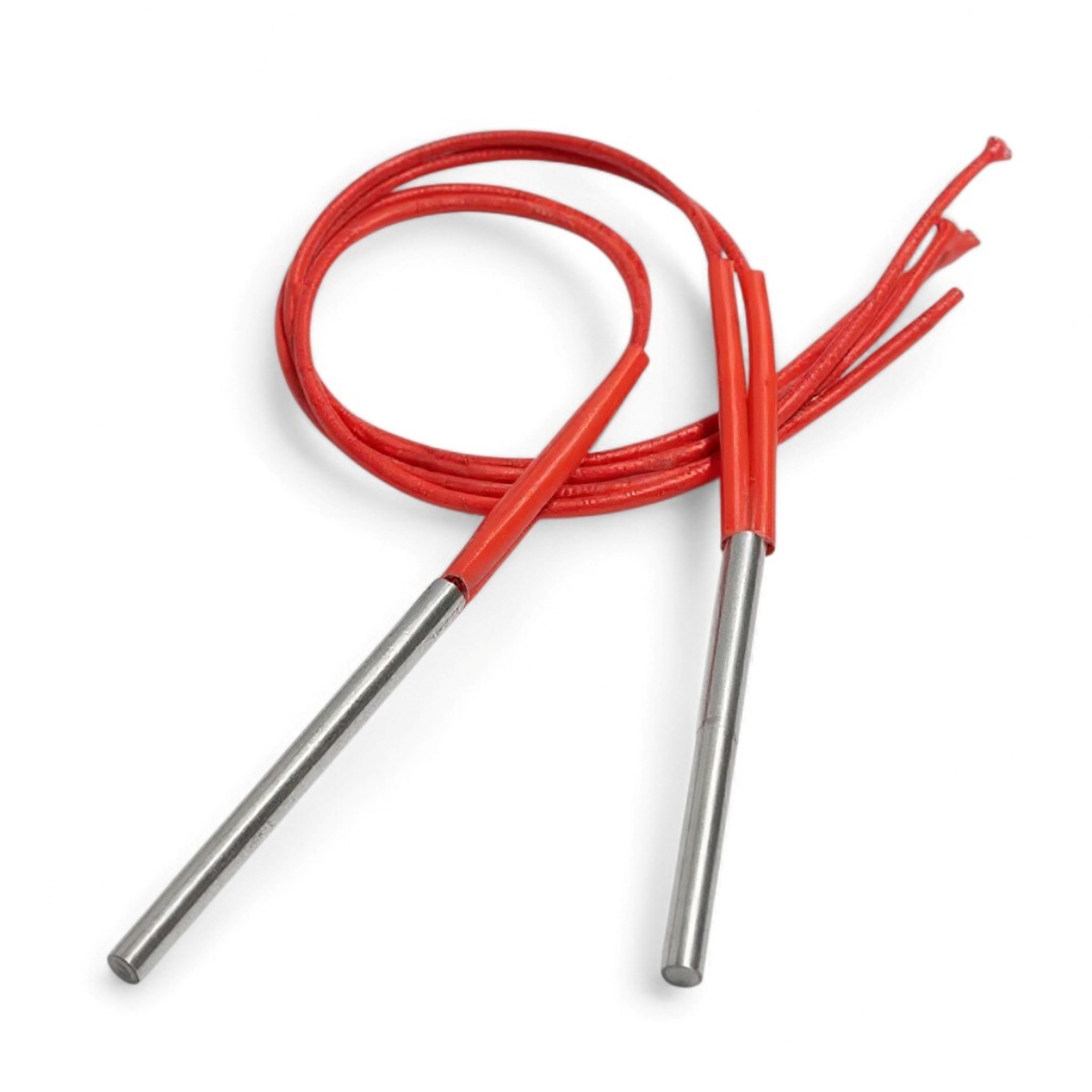

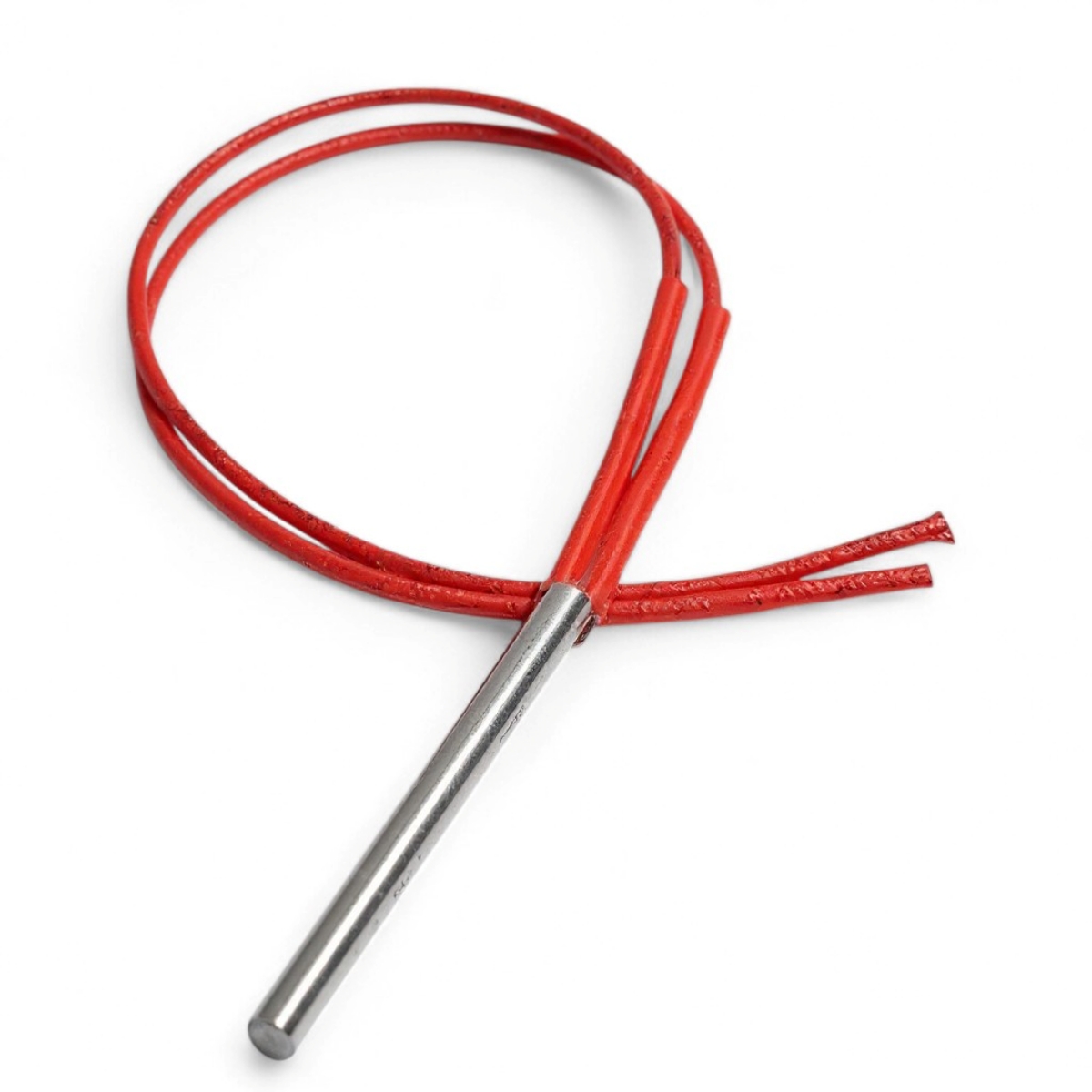

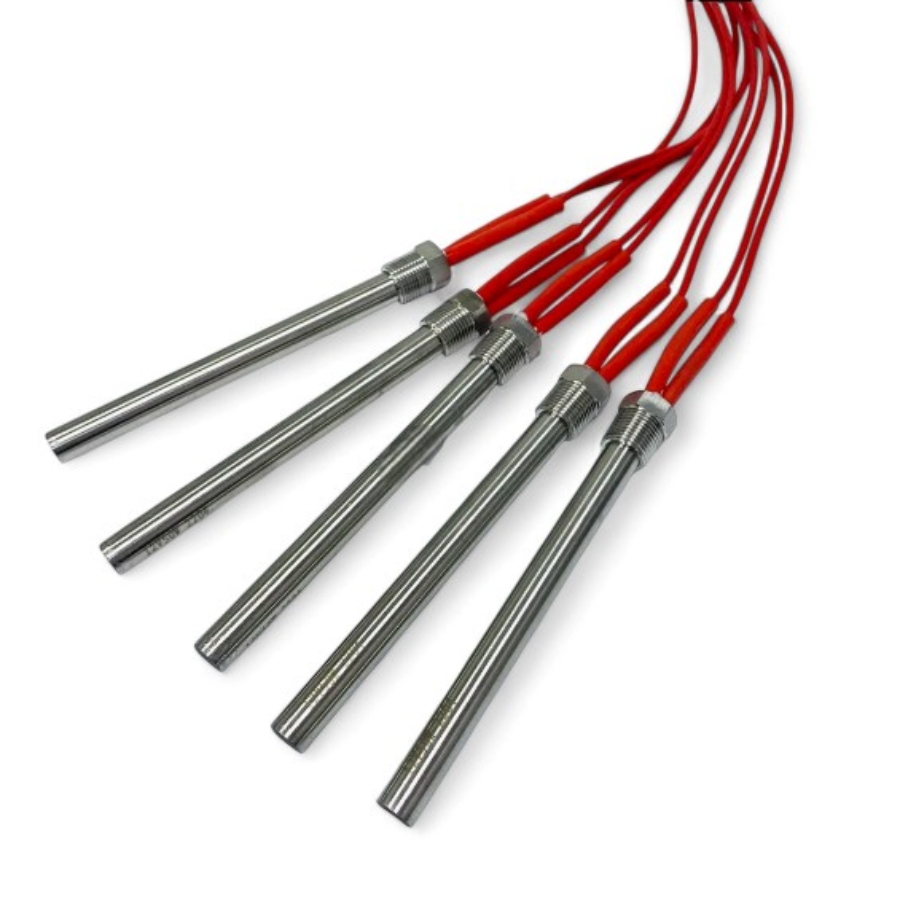

This product uses high-purity magnesium oxide and nickel-chromium heating wire as the heating elements, encased in a high-quality alloy sheath. With advanced manufacturing processes and strict quality control, it delivers outstanding durability and long service life.

• High-Temperature Performance: Premium cartridge heaters withstand temperatures up to 760°C (1400°F), ideal for long-term high-temperature applications.
• Precise Temperature Control: Available with built-in thermocouples for accurate heater temperature feedback and control.
• Flexible Design Options: Customizable cold section (cold end) and available in a wide range of diameters to accommodate different bore sizes and installation requirements.
• Easy Integration: Lead wires can be directly extended to control panels for simple installation and wiring.

These heaters meet the heating application standards for industrial equipment and are widely used across various industries.

Typical Applications：

• Injection Molding
• Packaging Machinery
• Die Casting Equipment
• Engine Preheating
• Lab Heating Processes

Heating Element Specifications (Material: SS304)
Inch Size
Material: SUS 304 stainless steel Length, diameter, wattage, and resistance follow commercial tolerance standards.

• Outer Diameter (O.D.): 1/4”、5/16”、3/8”、1/2”、5/8”
• Length Options: 1-1/2”、2”、2-1/2”、3”、4”、5”、6”、8”、10”、12”（Packaging Machinery）
• Power Density (Watts/Inch): 50W/Inch、70W/Inch、100W/Inch、120W/Inch
• Available Voltage: 110VAC、220VAC、240VAC、380VAC、415VAC

Metric Sizes
Metric Sizes：SUS 304 Material: SUS 304 stainless steel Length, diameter, wattage, and resistance follow commercial tolerance standards.

• Outer Diameter (O.D.): 7.0mm、8.0mm、10.0mm、12.0mm、20.0mm
• Length Options: 30mm、50mm、60mm、70mm、80mm、100mm、120mm、150mm、200mm、250mm、300mm
• Power Density (Watts/cm): 20W/cm、30W/cm、40W/cm、50W/cm
• Available Voltage: 110VAC、220VAC、240VAC、380VAC、415VAC

Order Instructions

Please specify the following when placing an order: O.D. × Length × Voltage × Wattage
Standard Lead Length: 300 mm (12 inches)

Notes：
Customized specifications are available upon request.
