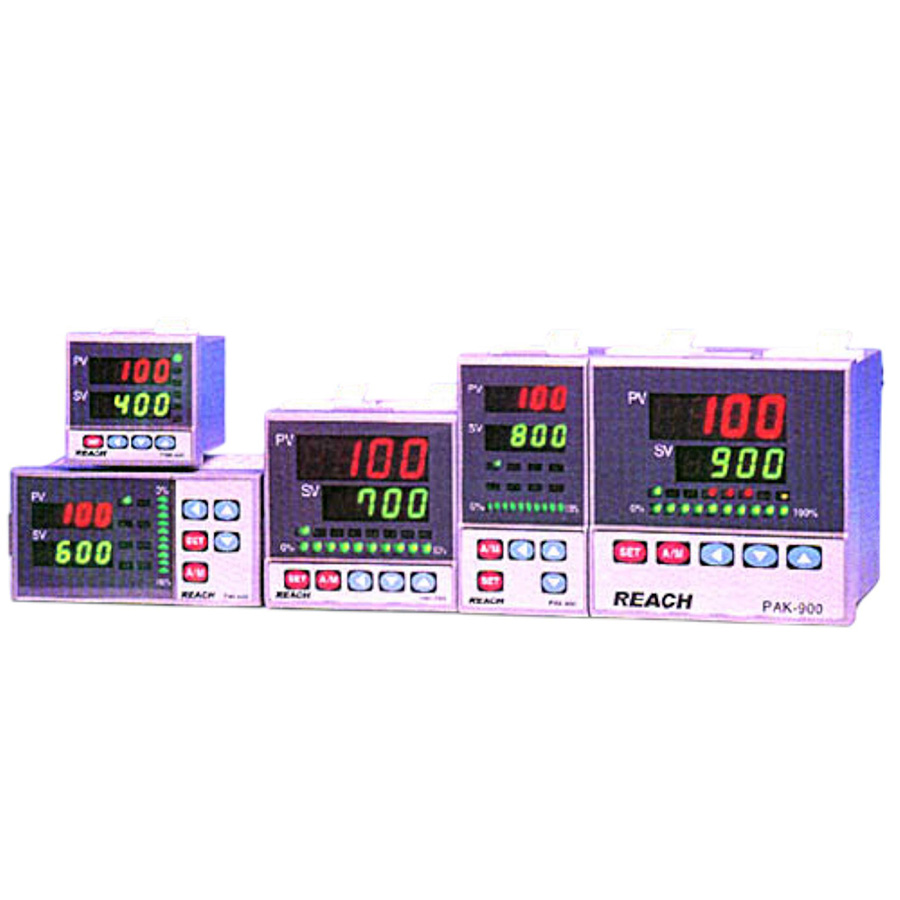

Product Specifications

• Multiple input types and range selection options.
• Equipped with the new Expert PID processing system, significantly improving PID control efficiency and effectively suppressing overshoot and undershoot conditions.
• Keylock function prevents incorrect operation and protects parameter settings from accidental changes.
• Built-in high/low alarm as a standard feature.

• Programmable control: Supports 2 sets of control programs, with up to 8 segments per program.
• Output control: Compatible with single-phase and three-phase systems, supporting SSR zero-cross trigger and SCR phase-angle gate trigger output.
• Communication interface: Supports RS-232 / RS-485 for master–slave data communication.
• Retransmission & Remote Set Value (Remote SV) capability.
• Three-wire open-loop servo motor control output.
• Timer function: Adjustable from 00.00 to 99.95 hours for time-based control at PV = SV.
