• KNE

    KNE

    Features and Applications

    • Elegant appearance with a refined painted finish
    • Large internal space for easy user wiring
    • Protection level complies with IEC529 enclosure protection rating IP65
    • Compatible with compression-type terminal blocks
    • Models with H = 33 ± 0.1 can be equipped with external terminal blocks or temperature transmitters
    • Suitable for assembling various structures of thermocouples and RTDs

    Item Specification
    Connection thread with protection tube M12×1、M16×1、M20×1、M22×1、M24×1、M27×1”、M33×1、G1/2”、G3/4”、NPT1/2”、NPT3/4”
    Cable entry thread M20×1.5、G1/2”、G3/4”、NPT1/2”、NPT3/4”
    Distance between two fixing holes with terminal block H = 33 ± 0.1、H = 36 ± 0.1、H = 40 ± 0.1

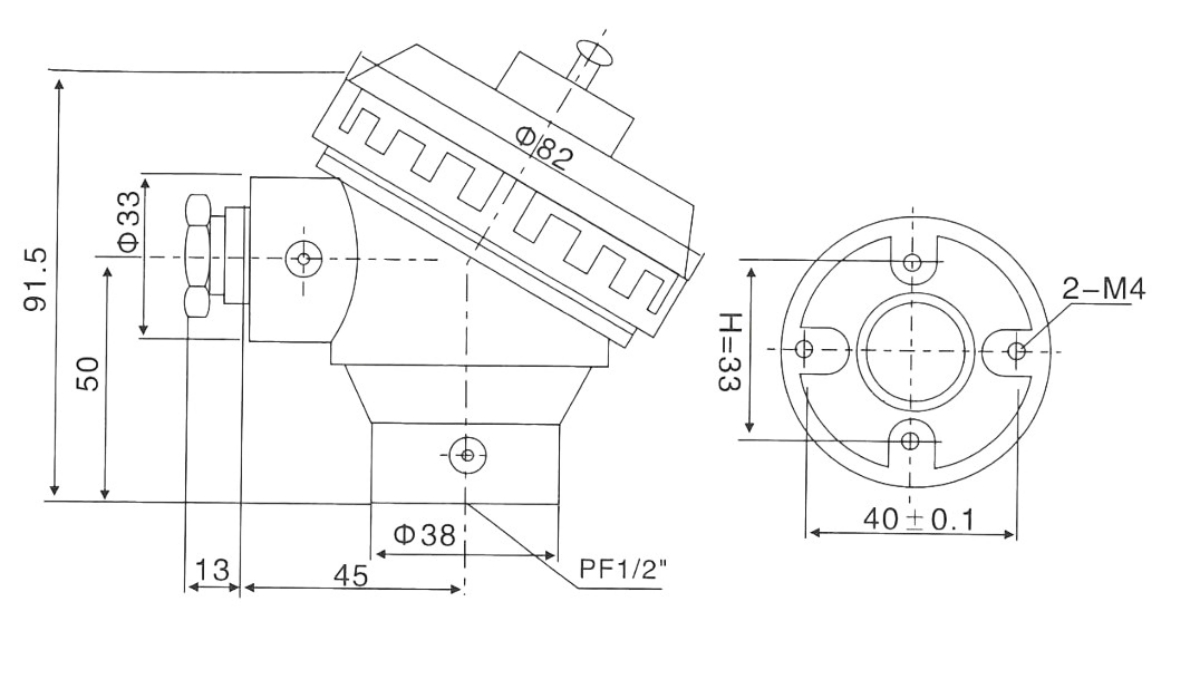

Structural Dimensions

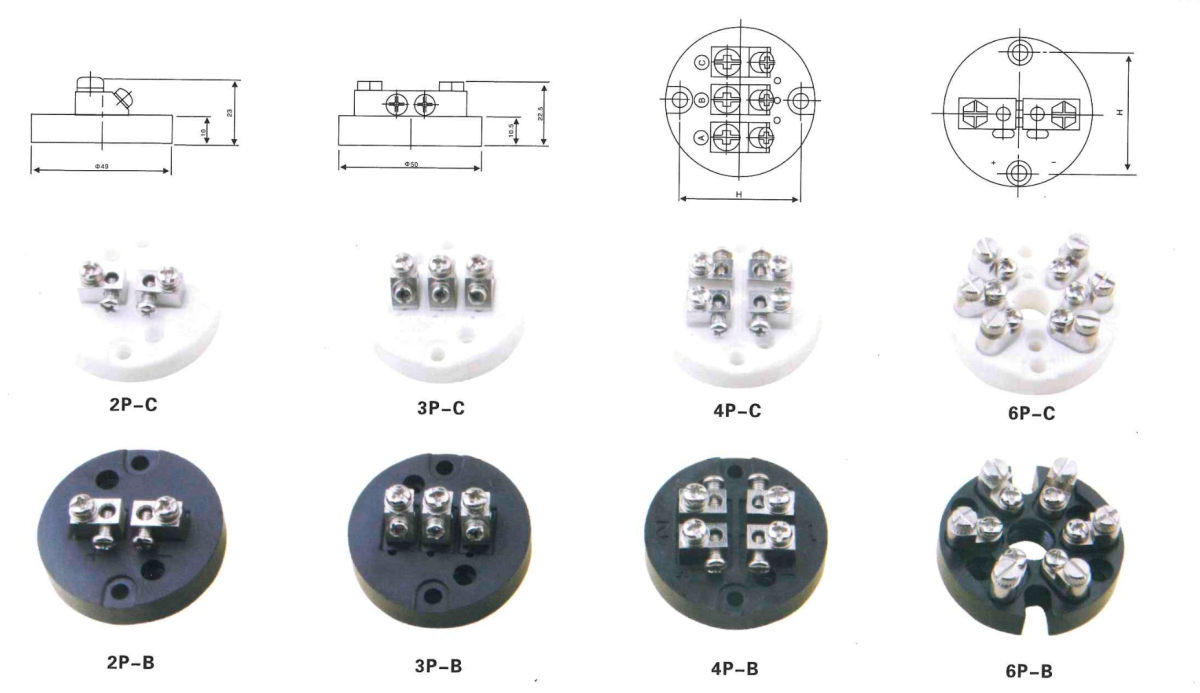

Terminal Block Structure and Dimensions
