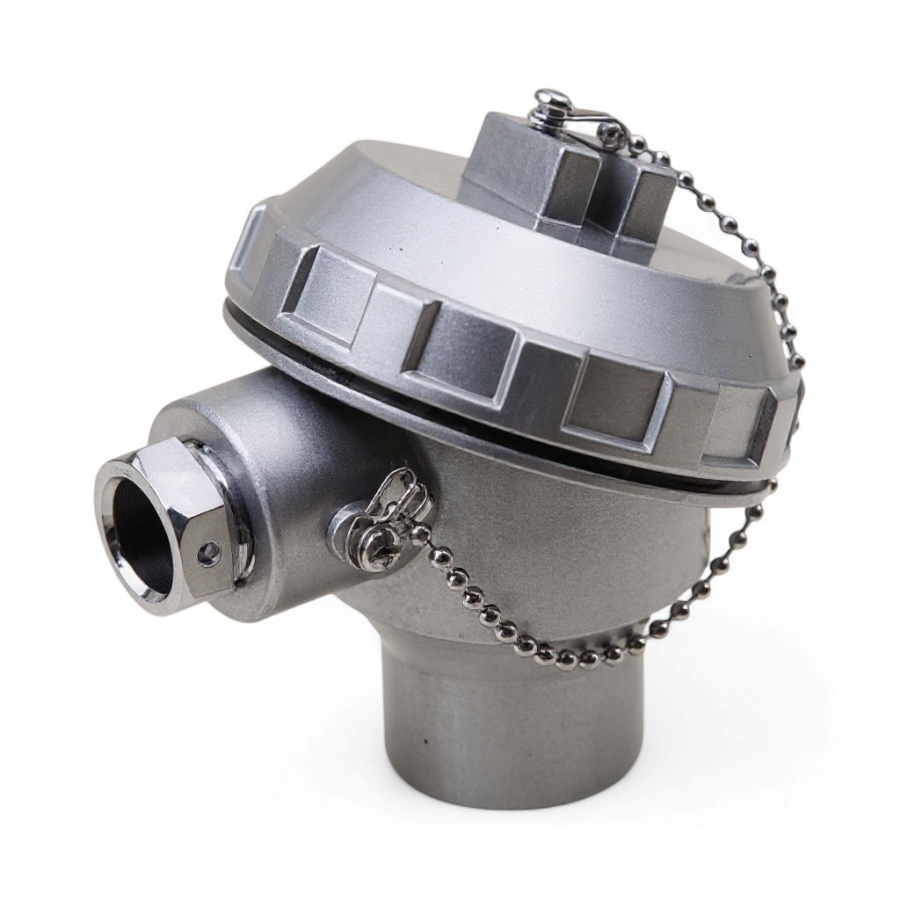

• KNC

    KNC

    Features and Applications

    • Durable housing with excellent dustproof and waterproof performance
    • Suitable for protecting terminal connections of various thermocouples and RTDs
    • Widely used in temperature measurement for metallurgy, power generation, petrochemicals, machinery, food processing, and more
    • Available in multiple thread specifications, offering flexible installation and compatibility with different protection tubes and cables

    Item Specification
    Connection thread with protection tube M12×1, M16×1, M20×1, M22×1, M24×1, M27×1, M33×1, G1/2”, G3/4”, NPT1/2”, NPT3/4”
    Cable entry thread M20×1.5, G1/2”, G3/4”, NPT1/2”, NPT3/4”
    Distance between two fixing holes with terminal block H = 33 ±0.1, H = 36 ±0.1, H = 40 ±0.1


Structural Dimensions


Terminal Block Structure and Dimensions
