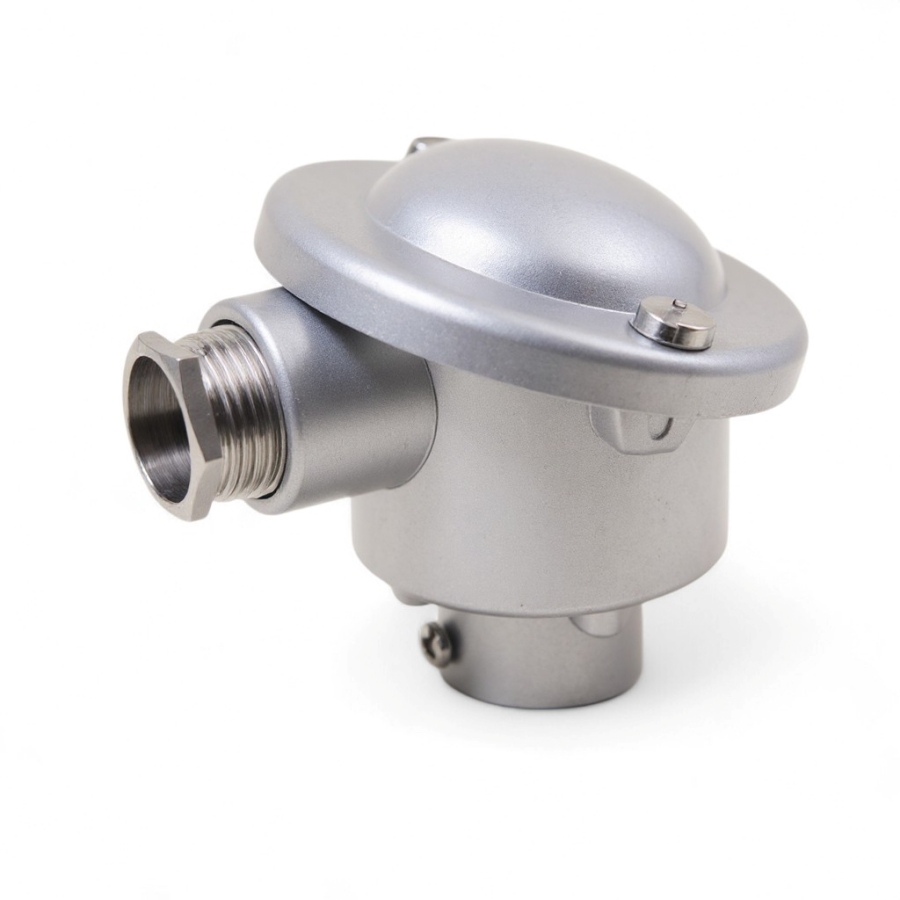

• KD

    KD

    Features and Applications

    • Attractive appearance with a bright painted finish
    • Large internal space for convenient wiring
    • Models with H = 33 ± 0.1 can be equipped with round external terminal blocks or adapters for international compatibility
    • Suitable for installing various types of thermocouples and RTDs, including versions equipped with temperature transmitters

    Item Specification
    Connection thread with protection tube M20×1, M22×1, G1/2”, NPT1/2”
    Cable entry thread M20×1.5, M22×1.5, G1/2”
    Distance between two fixing holes with terminal block H = 33 ±0.1

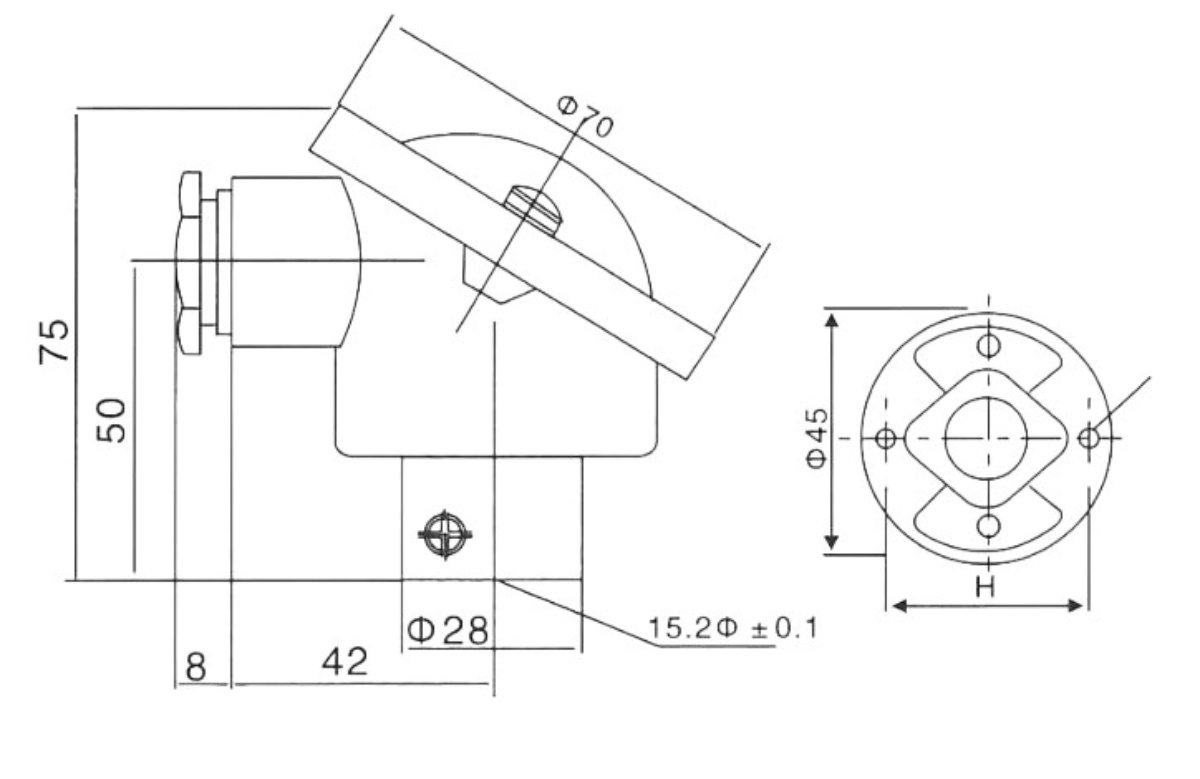

Structural Dimensions

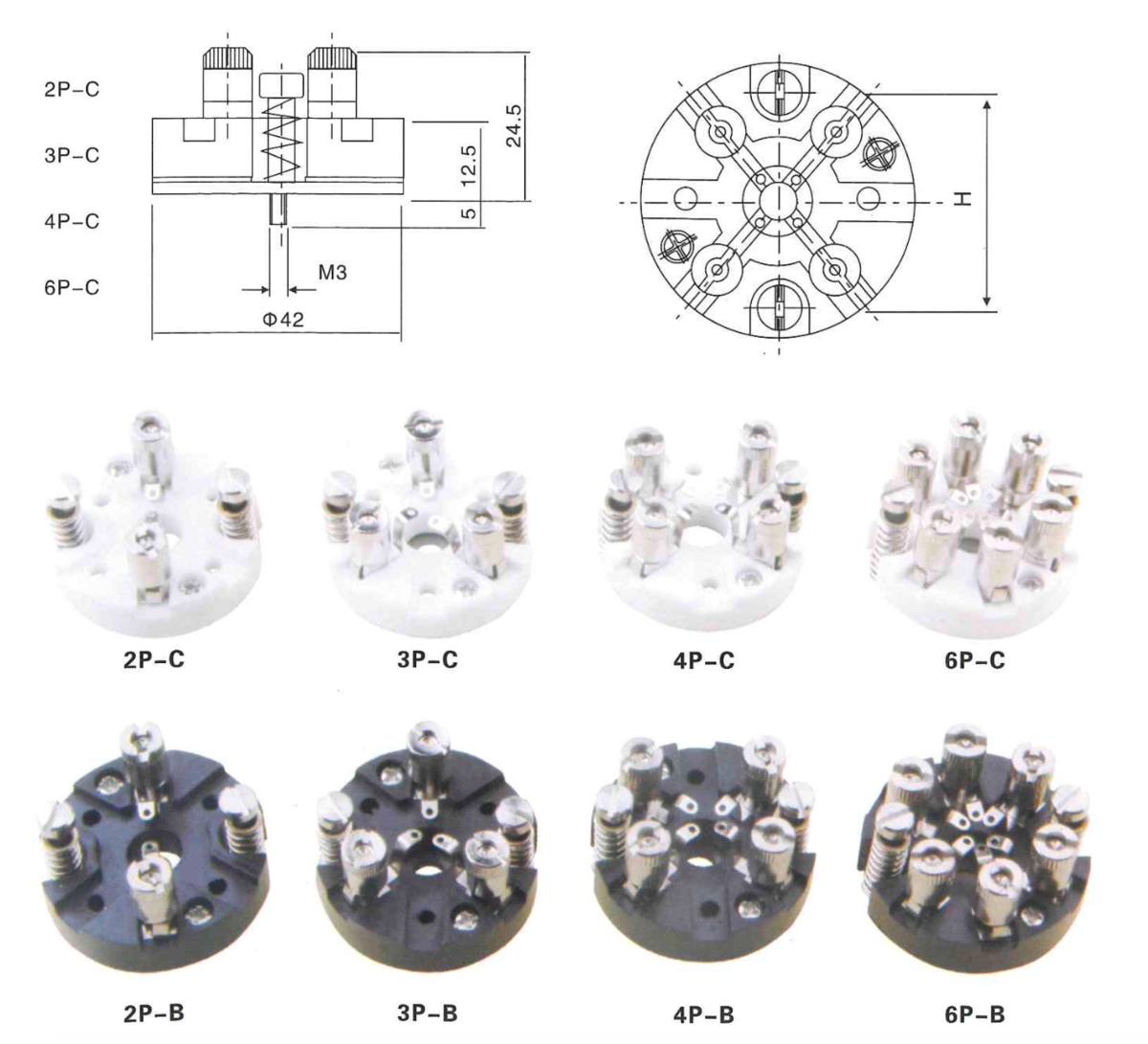

Terminal Block Structure and Dimensions
