• DANA

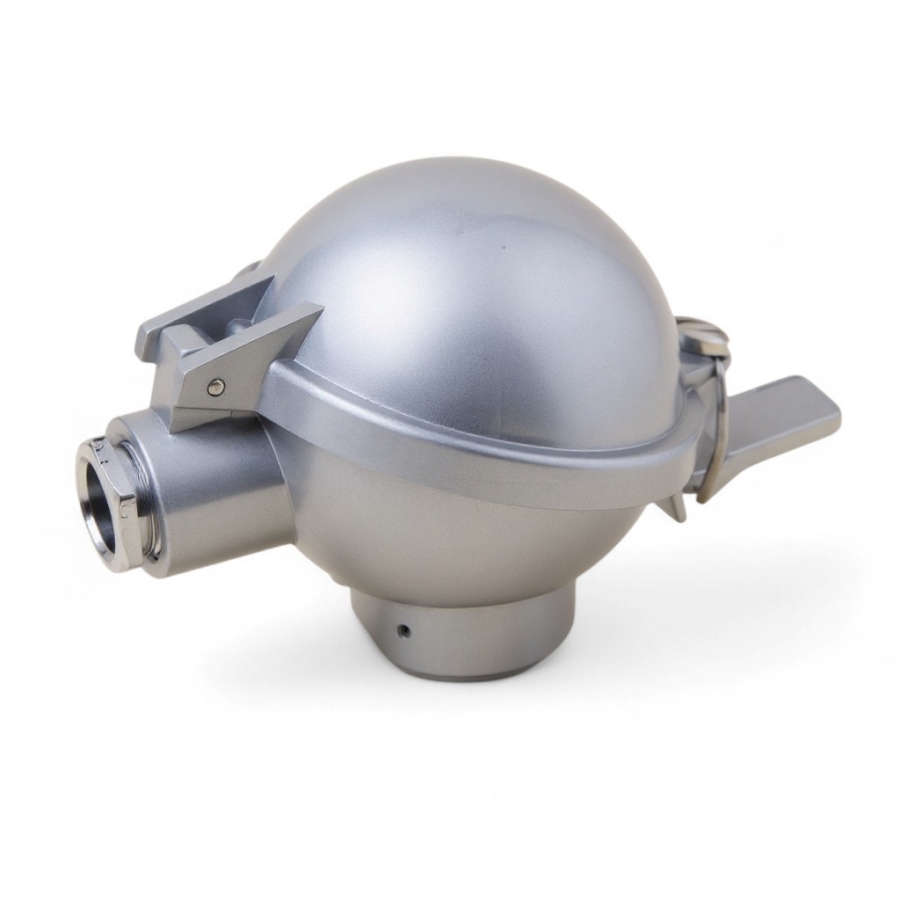

    DANA

    Features and Applications

    • Attractive appearance with a bright painted finish
    • Large internal cavity for convenient wiring
    • Protection level compliant with IEC529 enclosure protection rating IP65
    • Flip-cover design; the base and cover can also be secured using M5 screws
    • Compatible with various structures of thermocouples and RTDs

    Item Specification
    Connection thread with protection tube M12×1, M16×1, M20×1
    Cable entry thread M20×1.5
    Distance between two fixing holes with terminal block H = 33, H = 40, H = 36

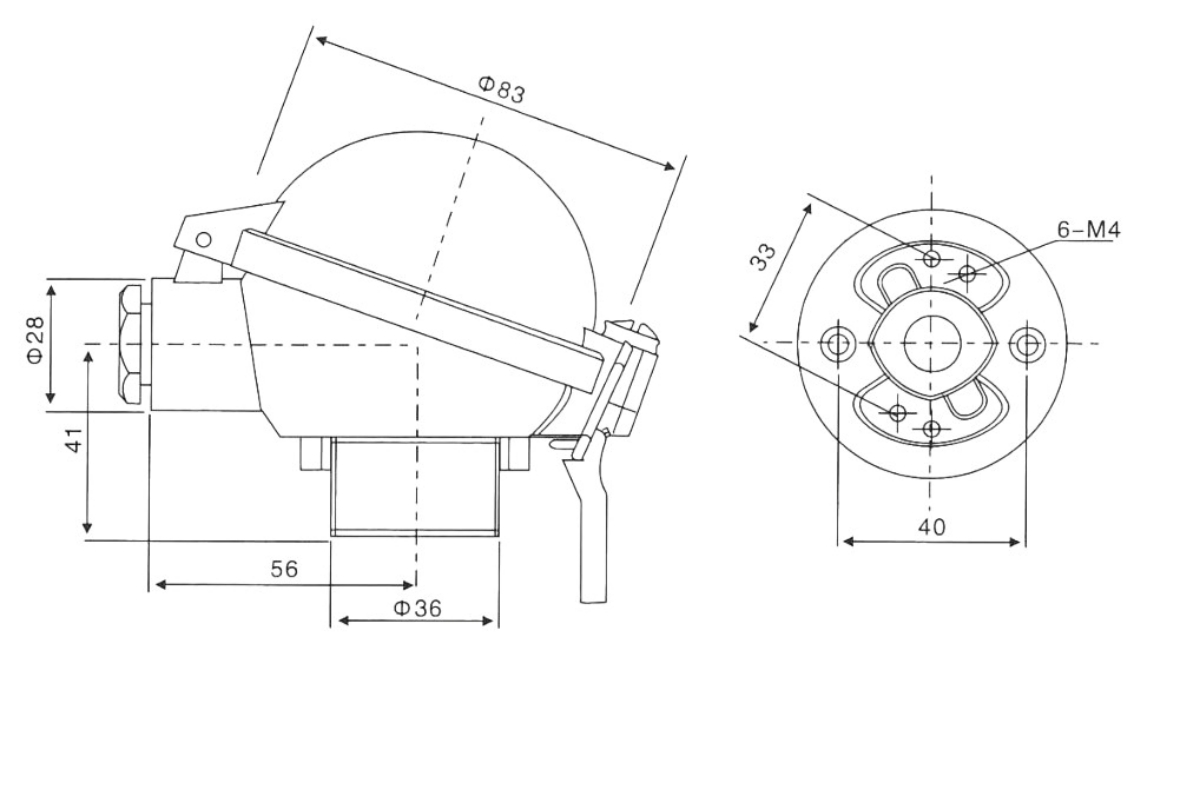

Structural Dimensions

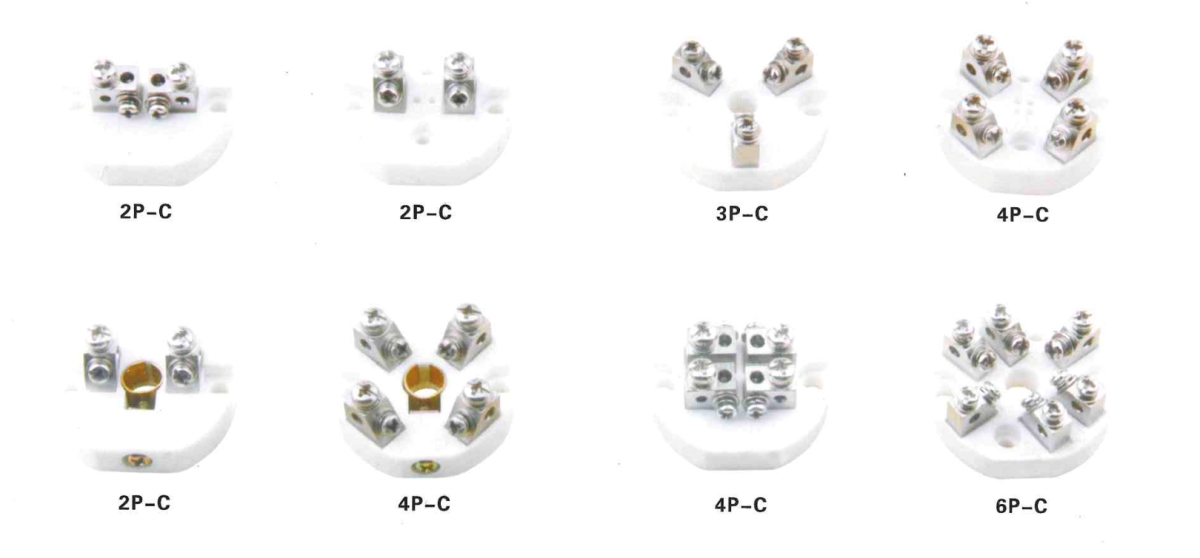

Terminal Block Structure and Dimensions
