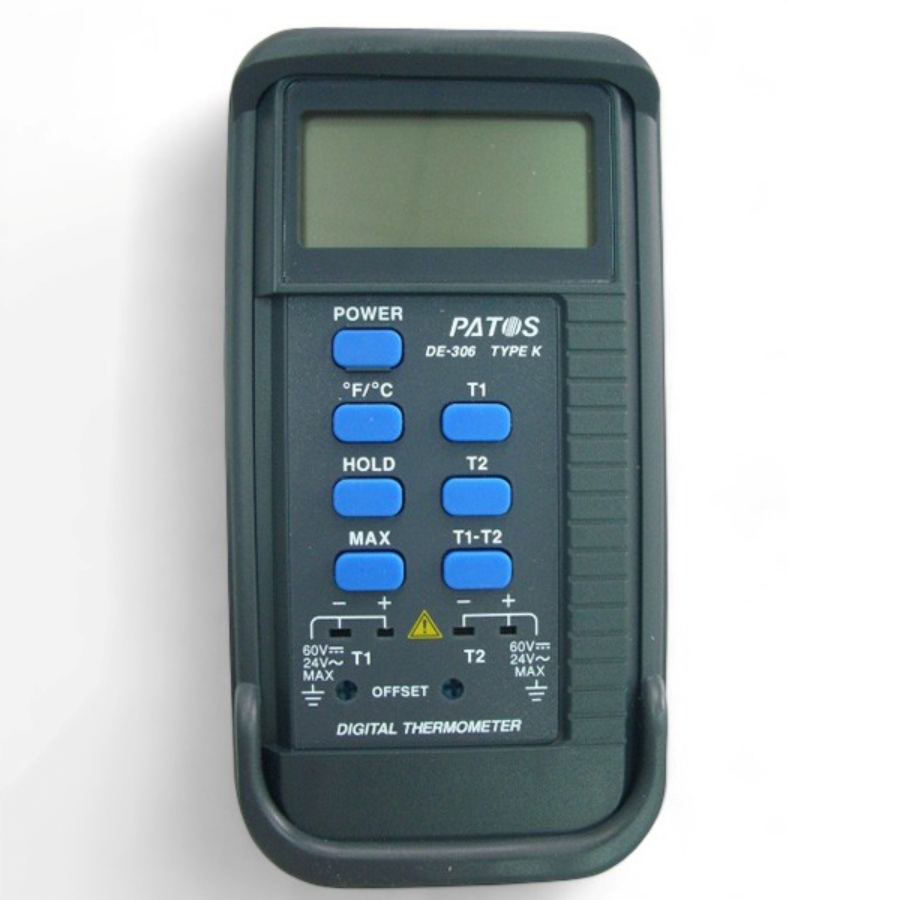

Product Specifications

• Large LCD screen for clear and easy reading
• Low-battery indicator reminds users to replace batteries in time
• Supports optional K-type thermocouple input
• Lightweight handheld design for easy carrying and operation
• Hold Function — freezes the current displayed value
• Maximum Record Function — displays the highest temperature measured
• °C / °F selectable display
• User-selectable resolution: 1°C or 0.1°C (1°F or 0.1°F)
• Front-panel °C / °F switch for intuitive operation
• Single thermocouple input, simple and stable design
• User-adjustable resolution (User-Selectable Resolution)
• Front-panel Offset Adjustment for calibration and fine temperature correction

• Temperature Scale °C or °F, user-selectable
• Resolution 1°C or 1°F (or 0.1°C or 0.1°F), user-selectable
• Inputs Dual K-type thermocouple inputs
• Measurement Range -50 ~ 1300°C -59 ~ 2000°F
• Operating Environment 0°C ~ 50°C (32°F ~ 122°F)
• Accuracy (Ambient 18–28°C)：
  ±(0.3% rdg + 1°C) for -50 ~ 1000°C
  ±(0.5% rdg + 1°C) for 1000 ~ 1300°C
  ±(0.3% rdg + 2°F) for -58 ~ 2000°F
  Note: Accuracy excludes the error of the K-type probe itself.
• Temperature Coefficient Add 0.1 × specified accuracy for every 1°C deviation from 23°C
• Error Offset Adjustment：Front-panel recessed OFFSET Adjust knob allows calibration against a reference temperature within a specified range
  (Note: Adjusting offset for one thermocouple may introduce error when switching to another probe.)
• Maximum Input Voltage：60V DC or 24V RMS AC between input terminals or between input and ground

• Compatible with the following K-type contact temperature probes (additional models can be added as needed):
