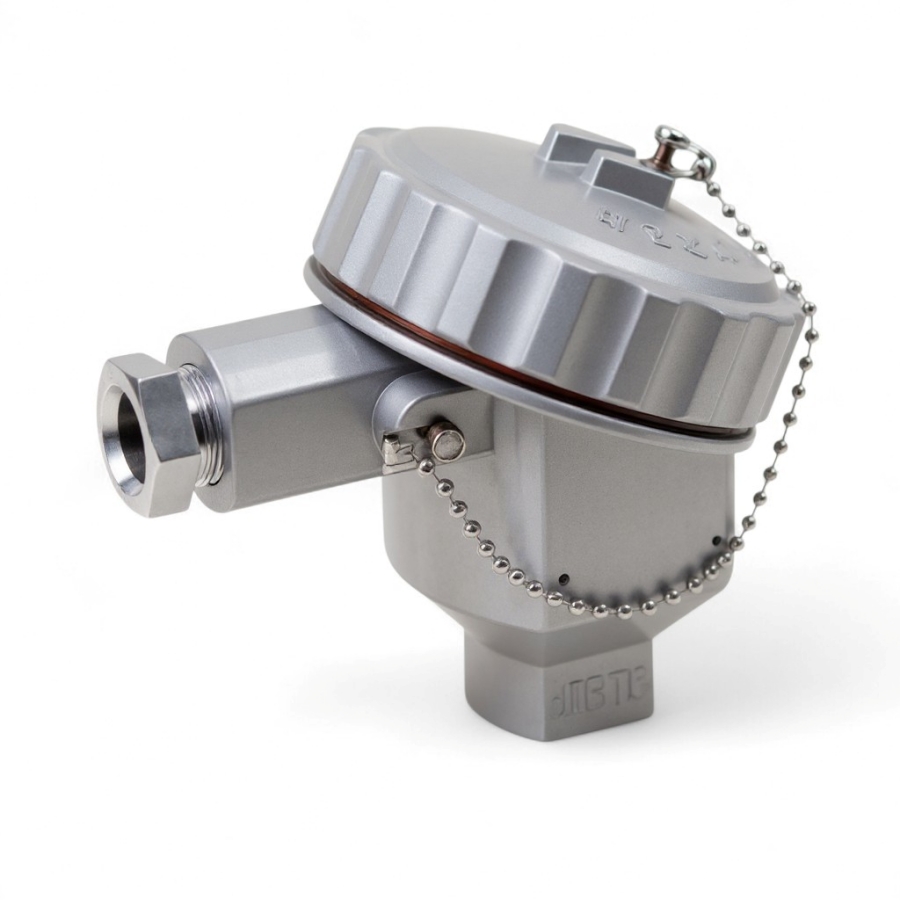

• XL-023

    XL-023

    Features and Applications

    • Attractive appearance with a bright painted finish.
    • Well-designed structure with simple assembly process.
    • Compatible with existing assembled thermocouple/RTD terminal blocks (H = 36 ± 0.1).
    • Compatible with the new-generation armored thermocouple/RTD terminal blocks jointly designed (H = 44 ± 0.1).
    • Explosion-proof rating: dIIBT1–T6.
    • Protection level complies with IEC529 “Degrees of Protection Provided by Enclosures” — IP65.
    • Can be assembled with various types of explosion-proof thermocouples and RTDs.

    Item Specification
    Connection thread with protection tube M12×1、M16×1
    Cable entry thread M20×1.5
    Distance between two fixing holes with terminal block H = 36 ± 0.1、H = 40 ± 0.1

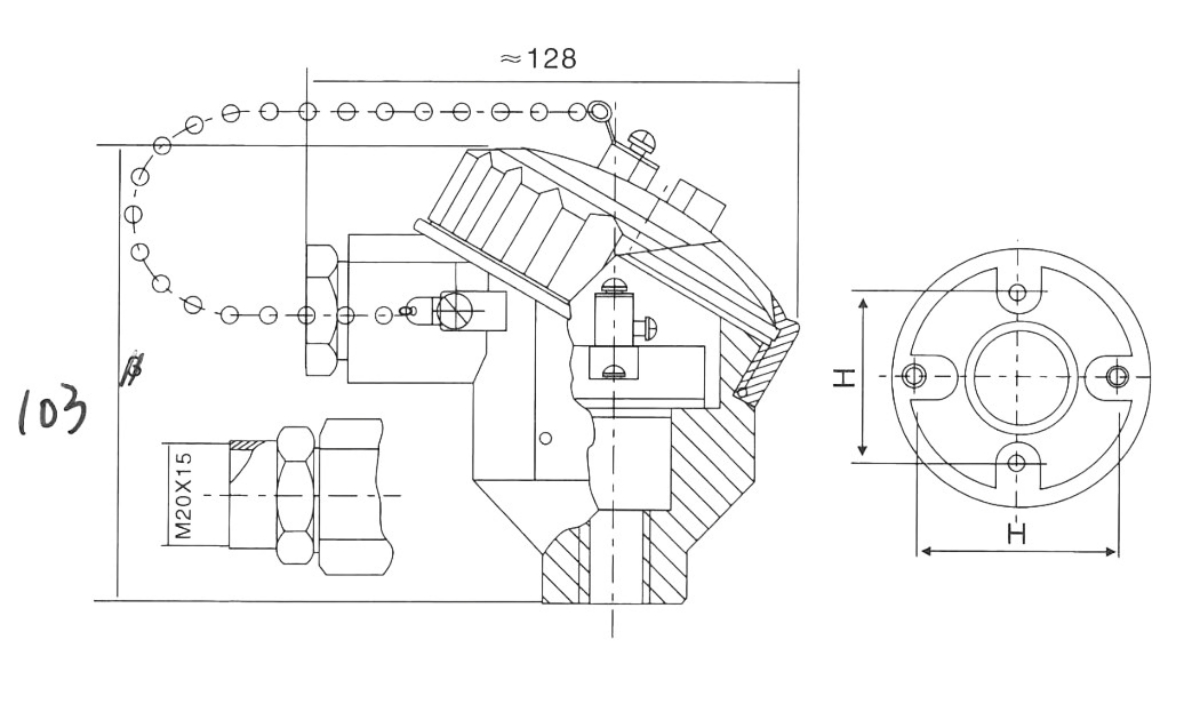

Structural Dimensions

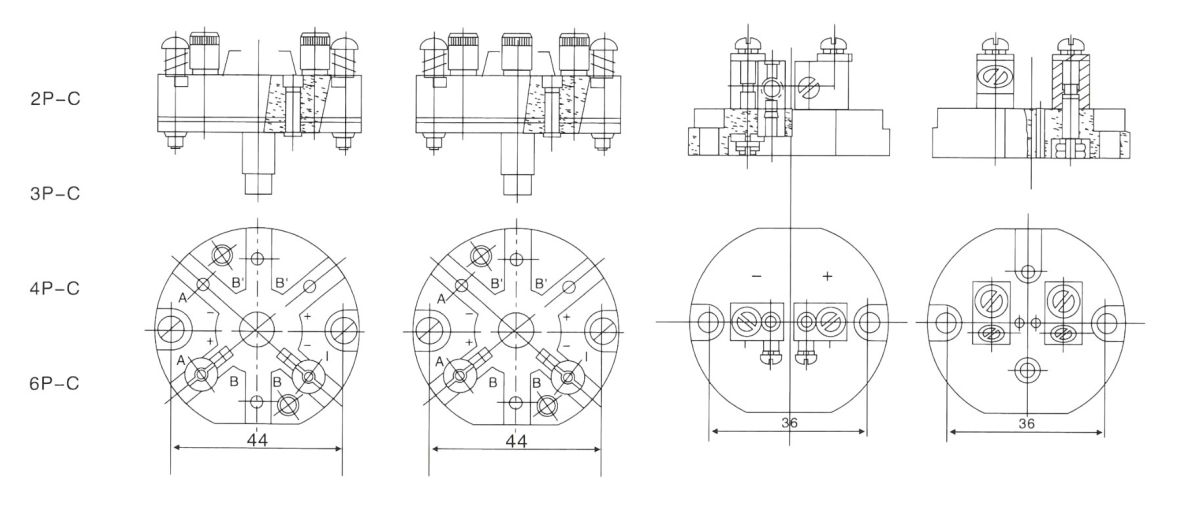

Terminal Block Structure and Dimensions
