• WX-6FGB-J2-SOS-FFR

    WX-6FGB-J2-SOS-FFR

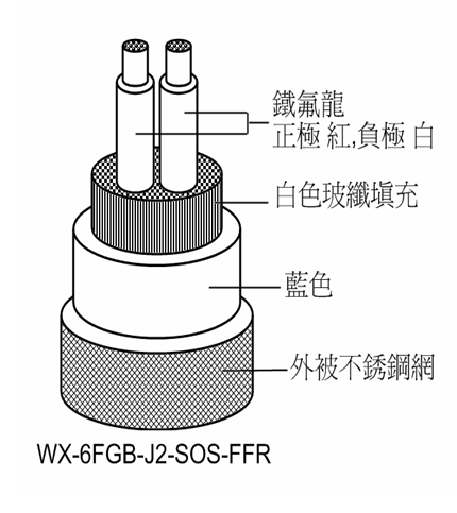

    Structural Dimensions


    Specifications
    Conductor (+) Size 0.3x7C
    Material N/A
    Construction N/A
    Conductor (–) Size 0.3x7C
    Material N/A
    Construction N/A
    Insulation Finished Outer Diameter 1.3mm
    Material Teflon (PTFE)
    Colors Positive: Red
    Negative: White
    Isolation Layers Material White fiberglass filling
    Finished Outer Diameter N/A
    Isolation Layers Material Blue PVC
    Finished Outer Diameter 5mm
    Outer Sheath Thickness N/A
    Finished Outer Diameter 5.8mm
    Material Stainless Steel Braid
    Color Silver
