• KXF-0.2×7-FEP-IS-IEC

    KXF-0.2×7-FEP-IS-IEC

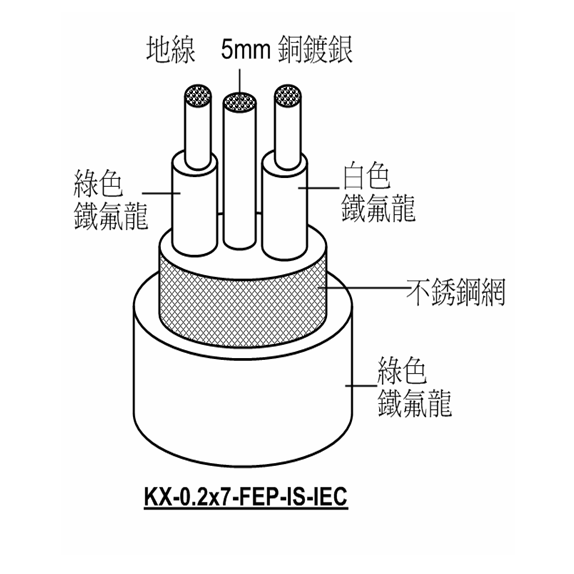

    Structural Dimensions


    Specifications
    Conductor (+) Size 0.2mm x 7C
    Material N/A
    Construction N/A
    Conductor (–) Size 0.2mm x 7C
    Material N/A
    Construction N/A
    Insulation Finished Outer Diameter 1 mm
    Material Teflon (PTFE)
    Color Positive: Green
    Negative: White
    Ground Wire Size 5mm
    Material Silver-plated Copper
    Color Silver
    Shielding Material Stainless Steel Braid
    Construction 0.1 mm braiding
    Outer Sheath Thickness 0.6mm
    Finished Outer Diameter 3 mm
    Material Teflon (PTFE)
    Color Green
