• NI-0.22x19x2C-H-SOS

    NI-0.22x19x2C-H-SOS

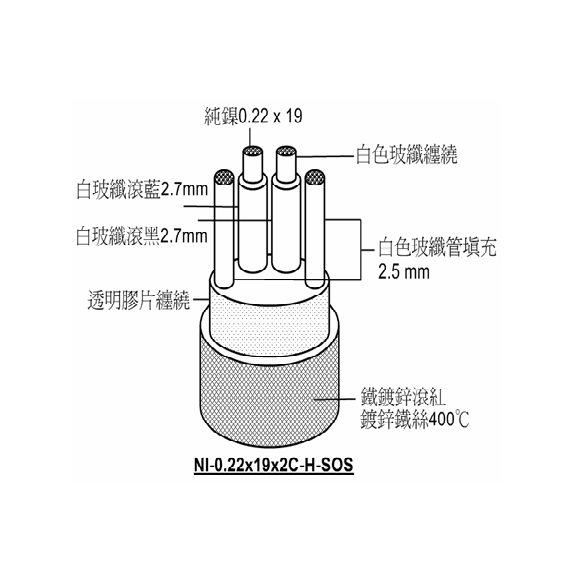

    Structural Dimensions


    Specifications
    Conductor (+) Size 0.22mm x 19C
    Material Pure Nickel (Ni)
    Construction N/A
    Conductor (–) Size 0.22mm x 19C
    Material Pure Nickel (Ni)
    Construction N/A
    Insulation Finished Outer Diameter 2.7mm
    Material Fiberglass
    Color Positive: White with blue tracer
    Negative: White with black tracer
    Isolation Layers Material Fiberglass
    Finished OD / Structure 2.5mm
    Isolation Layers Material Transparent tape wrapping
    Finished OD / Structure 0.05mm
    Outer Sheath Thickness 0.8mm
    Finished Outer Diameter 6.5 mm
    Material Galvanized Iron Braid
    Color Silver with red tracer
