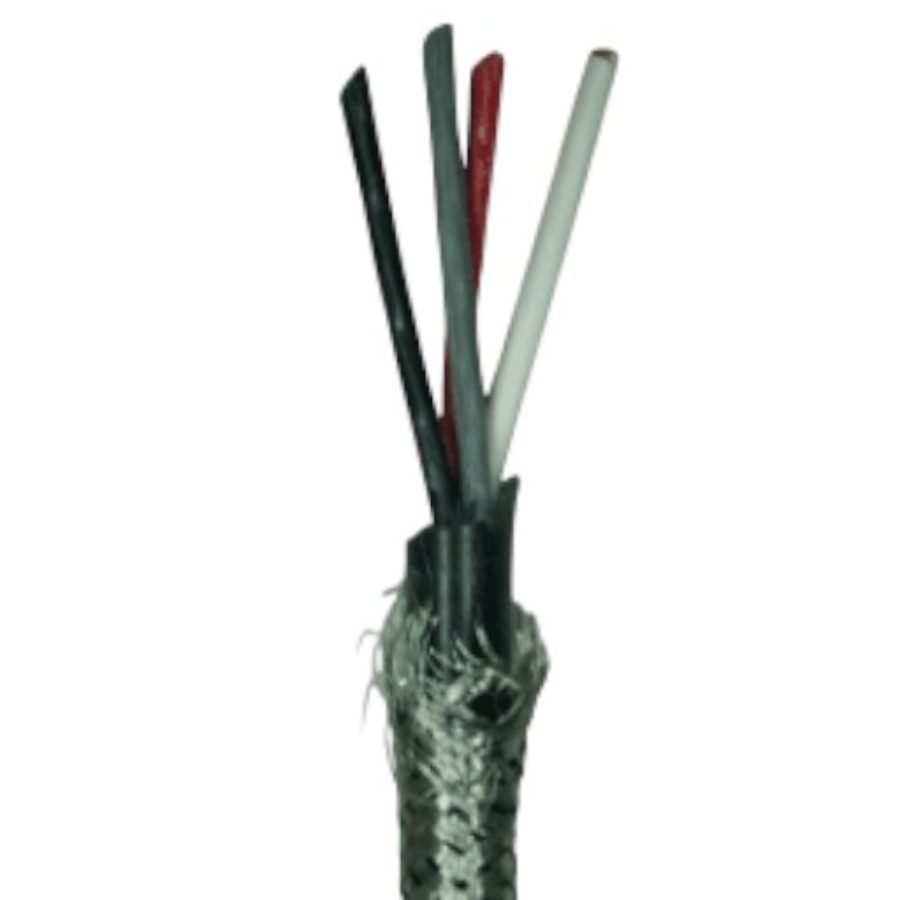

• WPR-G (SOS) 50:0.18 x 4C

    WPR-G (SOS) 50:0.18 x 4C

    Structural Dimensions


    Specifications
    Conductor (+) Size 0.18mm x 50
    Material Copper (CU)
    Construction N/A
    Conductor (–) Size 0.18mm x 50
    Material Copper (CU)
    Construction N/A
    Insulation Standard Thickness 2.2mm
    Material FEP
    Colors Red / Black (+)
    White / Gray (–)
    Isolation / Ground Ground Wire Material N/A
    Ground Wire Construction N/A
    Isolation Material PVC
    Outer Sheath Thickness N/A
    Finished Outer Diameter 8.15 mm (7.5 mm without stainless steel braid)
    Material SUS304
    Color Gray
