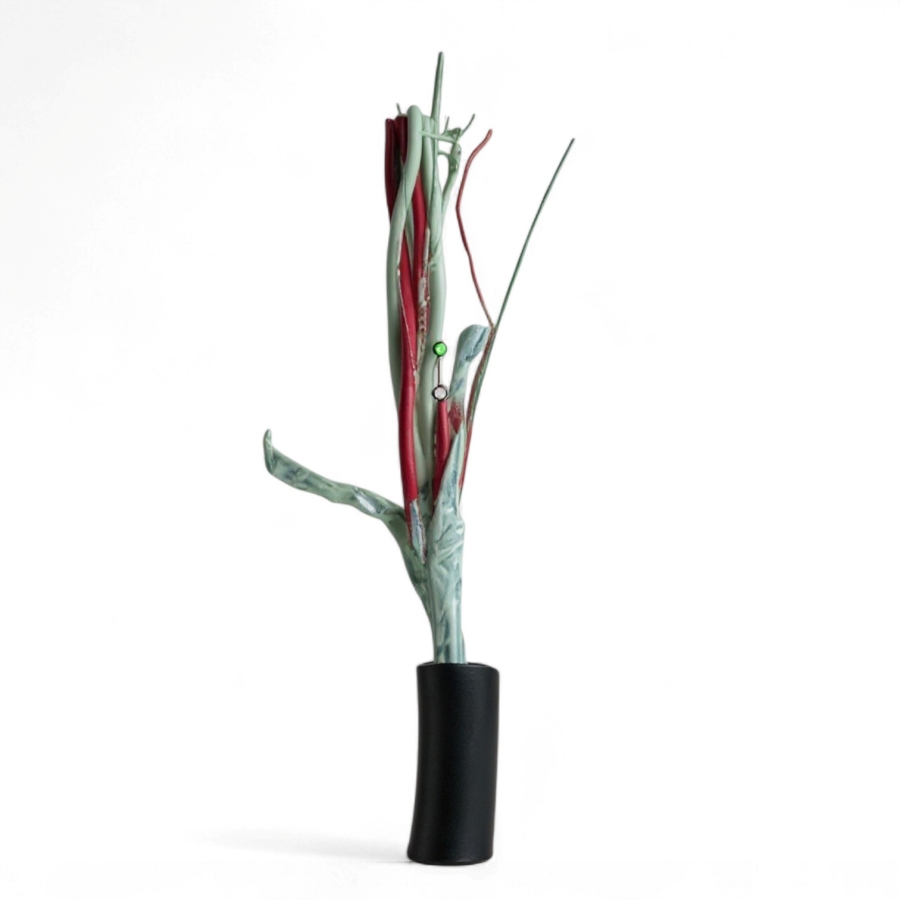

• R type 18AWG x (24:0.2) x 2P

    R type 18AWG x (24:0.2) x 2P

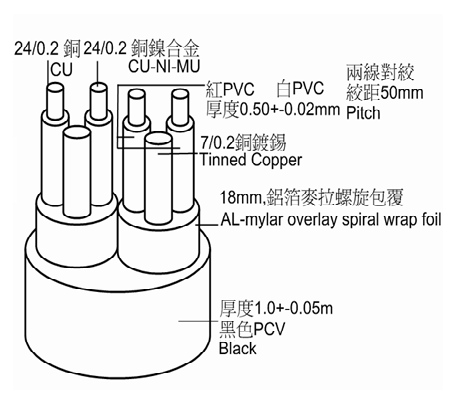

    Structural Dimensions


    Specifications
    Conductor (+) Size 18AWG
    Material Copper (CU)/td>
    Construction 24/0.2±0.008mm (0.777mm)
    Conductor (–) Size 18AWG
    Material Cu-Ni alloy(Cu-Ni-Mu)
    Construction 24/0.2±0.008mm (0.777mm)
    Insulation Standard Thickness 0.5±0.02 mm
    Material 105℃ P.V.C
    Colors RPX/RED (+)
    PNX/WHITE (-)
    Isolation / Ground Ground Wire Material Tinned Copper
    Ground Wire Construction 7/0.2±0.008mm
    Isolation Material 18mm AL-mylar 25％overlay spiral wrap foil
    對絞 絞距 50±1mm
    絞合完成外徑 MFD
    Outer Sheath Thickness 1.0±0.05mm
    Finished Outer Diameter MFD
    Material 105℃ P.V.C
    Color Black
