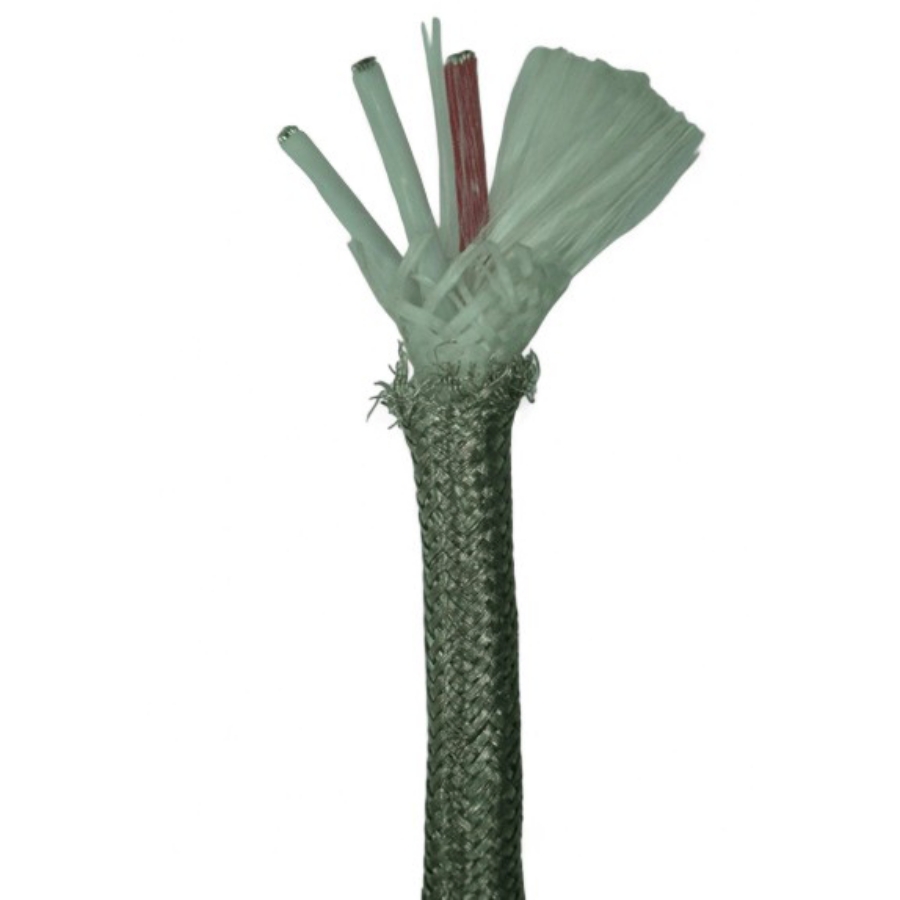

• TC-RTD-0.25x19x3C

    TC-RTD-0.25x19x3C

    Structural Dimensions


    Specifications
    Conductor (+) Size 0.25mm x 19C
    Material Copper
    Construction N/A
    Conductor (–) Size 0.25mm x 19C
    Material Copper
    Construction N/A
    Insulation Finished Outer Diameter 1.7mm
    Material FEP
    Color White / Red
    Isolation Layers Material White fiberglass filler
    Finished OD N/A
    Isolation Layers Material White FEP tape wrapping
    Finished OD N/A
    Isolation Layers Material White fiberglass braid
    Finished OD N/A
    Outer Sheath Thickness 0.3mm
    Finished Outer Diameter 5mm
    Material Copper braid
    Color Silver
