• S391 KAPTON Tape

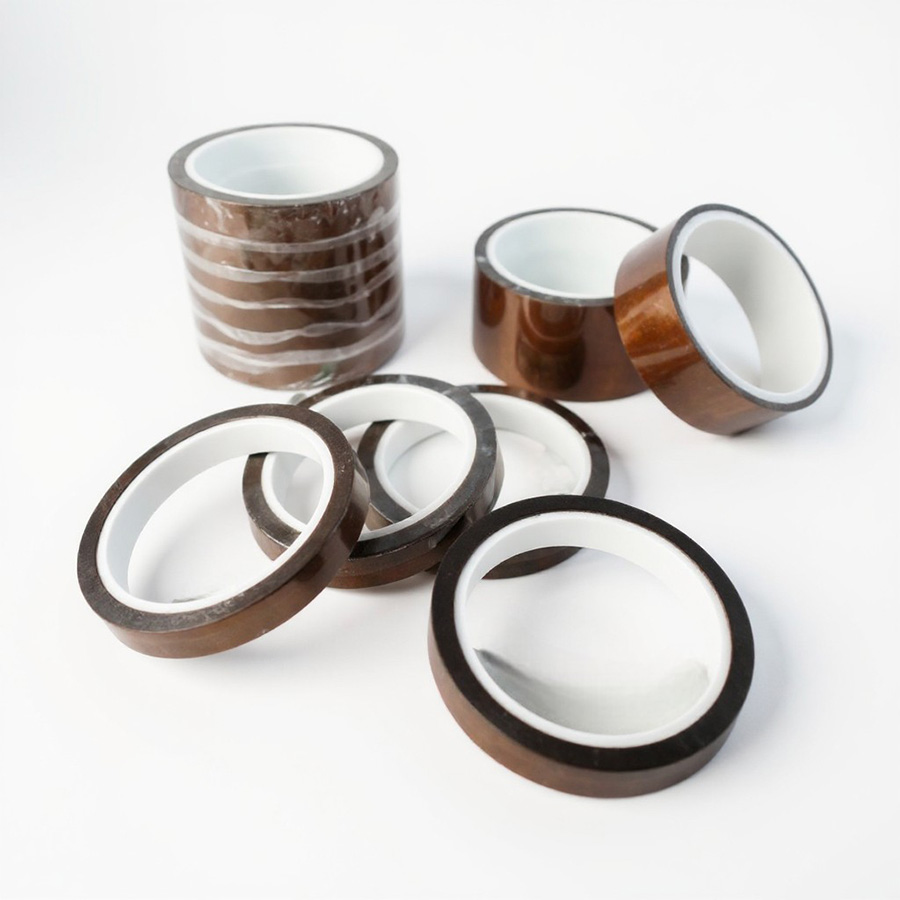

    S391 KAPTON Tape

    Materials：
    • Polyimide Film
    • Silicone Adhesive

    Product Specifications：
    • Length: 33M / Roll
    • Width: 3 mm to 630 mm (customizable per customer request)


    Physical Properties：
    Item Specification Unit
    Film Thickness 0.025 mm
    Temperature Resistance 260 ℃
    Adhesion > 0.6 Kg – f / in
    Holding Power (H) > 2 hr / 180 ℃
    Holding Power (L) > 24 hr / 25 ℃
    Class H 　
    Dielectric Strength > 1.0 Min. / 4kv
    Total Thickness 0.06 +/- 0.01 mm

    Characteristics：
    • Temperature resistance: –60°C to 260°C
    • Film withstands up to 400°C
    • Excellent adhesion on various surfaces; leaves no residue after removal
    • Superior electrical insulation
    • Good chemical resistance


    Applications：
    • Protection during PCB processing, including IR reflow and solder wave (gold finger masking)
    • Insulation wrapping for high-temperature generator coils
    • Insulation and protection for electric heating components
    • High-temperature masking and protection for electronic parts


    Notes：
    • Store in a cool, well-ventilated location; avoid direct sunlight
    • Do not touch or contaminate the adhesive surface before use to ensure optimal adhesion
